New Holland

B95C

Backhoe Loader

Max Speed
22.0 mph
Gross Power
97.0 hp
Net Power
95.0 hp
All backhoe loaders

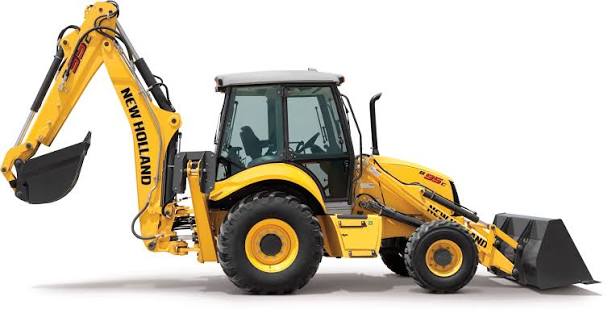

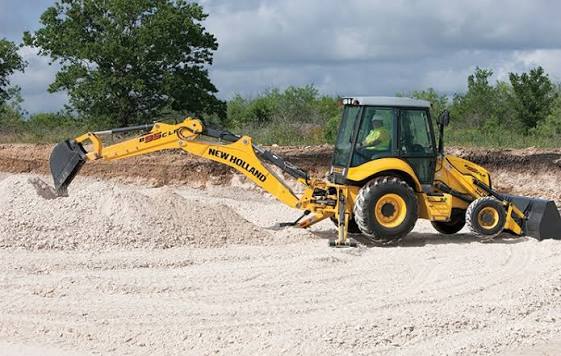

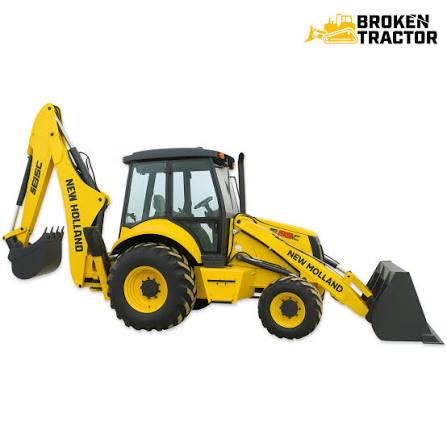

New Holland B95C Backhoe Loader
1 / 5
Image 1 of 5
Image: construction.newholland.com

Specifications

57 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,135 lb

Engine

Engine specifications
Engine ModelFPT F5BFL413B*B003
Displacement207 in³
Gross Power97.0 hp
Net Power95.0 hp
Torque Measured @1,400 rpm
Net Max Torque338 lb-ft

Weights

Weights specifications
Base Unit17,560 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity40.0 gal/min
System relief pressure3,045 psi

Dimensions

Dimensions specifications
Transport Width91 in
Transport Length289 in
Height to Top of Suspended Cab114 in
Stabilizer operating127 in
Stabilizer spread127 in

Transmission

Transmission specifications
Max Speed22.0 mph
POWER SHUTTLE Gear forward4
POWER SHUTTLE Gear reverse4
POWERSHIFT Gear forward4
POWERSHIFT Gear reverse3
SHIFT Max Fwd travel speed22.1 mph
SHUTTLE Max forward speed22.5 mph

Fluid Capacities

Fluid Capacities specifications
Fuel Tank34.7 gal
Hydraulic system29.4 gal
Engine Oil2.2 gal
Cooling system6.4 gal
Hydraulic Tank13.4 gal
DEF Tank3.5 gal

General Specifications

General Specifications specifications
Operating Weight lbs (kg)18,525 (8,403) Starting 2019 Model Year
Max Digging Depth ft. (m)14.5 (4.4) Starting 2019 Model Year
Backhoe Loading Height ft. (m)11.9 (3.77) Starting 2019 Model Year
Travel Speed 4th Gear Fwd MPH (kmh)22.1 (35.5) Starting 2019 Model Year
Loader SAE HP (kw)97 (72) Starting 2019 Model Year
Loader Lift Capacity lbs. (kg)7,996 (3,627) Starting 2019 Model Year
Loader Breakout Force lbs. (kg)10,294 (4,669) Starting 2019 Model Year

Backhoe

Backhoe specifications
Bucket capacity0.30 yd³
Bucket capacity - Extended0.10 yd³
Max dig depth175 in
Max dig depth - Extended222 in
Dig Depth186 in
Load Height151 in
Loading Height145 in
Bucket digging force12,932 lb
Bucket digging force - Extended19 lb
Crowd digging force8,587 lb
Crowd digging force - Extended9 lb
Loading Height - Extended175 in
Loading Reach @ max height64 in
Loading Reach @ max height - Extended95 in
Max pin height179 in
Max pin height - Extended224 in
Reach from swing post215 in
Reach from swing post - Extended248 in

Loader

Loader specifications
Lift Capacity7,996 lb
Bucket Breakout Force1,188 lb
Reach at Max Dump Height29 in
Height to hinge pin137 in
