New Holland
Caterpillar
434E

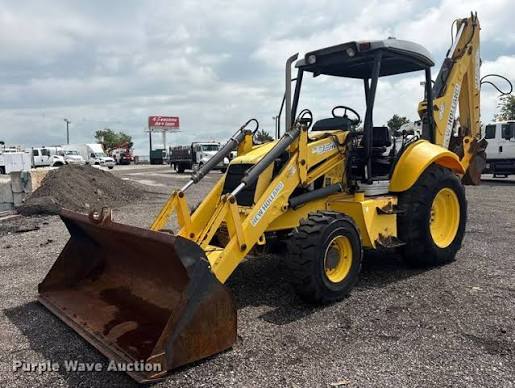

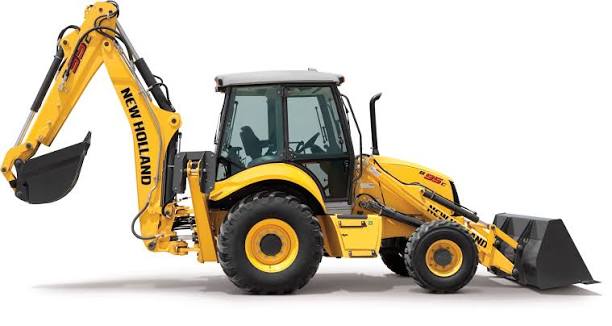

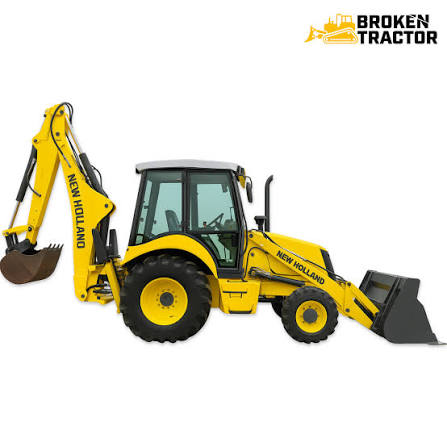

Backhoe Loader
37 specifications
1 / 5
Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight 4wd | 16,953 lb |
|---|---|
| Operating Weight 2wd | 16,567 lb |
| Fuel Capacity | 35.7 gal |
| Hydraulic System Fluid Capacity | 31.0 gal |
| Cooling System Fluid Capacity | 6.4 gal |
| Tire Size Front - 2wd / 4wd | 12-16.5 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 3.6 gal |
| Alternator Supplied Amperage | 90 A |
| Max Weight | 19,340 lb |
Engine
| Engine Model | 445T/M2 |
|---|---|
| Displacement | 275 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 95.3 hp |
| Net Power | 88.6 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Net Max Torque | 294 lb-ft |
Hydraulic System
| Pump Flow Capacity | 39.9 gal/min |
|---|---|
| Relief Valve Pressure | 3,045 psi |
| Pump Type | Dual Gear |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 86 in |
| Transport Width | 90 in |
| Transport Length | 287 in |
| Height to Top of Suspended Cab | 114 in |
Transmission
| Max Speed | 20.1 mph |
|---|---|
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | Power-Reversing/Torque Conv |
Tires & Wheels
| Rear Tires Size | 19.5L-24 |
|---|
Backhoe
| Dig Depth | 168 in |
|---|---|
| Reach From Swivel | 219 in |
| Dig Depth - Extended | 216 in |
| Load Height - Extended | 176 in |
| Bucket Dig Force | 12,809 lb |
| Reach From Swivel - Extended | 263 in |
| Reach at Load Height - Extended | 107 in |
| Bucket Dig Force - Extended | 12,809 lb |
Loader
| Bucket Capacity | 1.29 yd³ |
|---|---|
| Clearance at Max Dump Height | 97 in |
| Bucket Breakout Force | 12,030 lb |
| Bucket Width | 87 in |
| Reach at Max Dump Height | 42 in |
| Dig Depth | 8 in |
