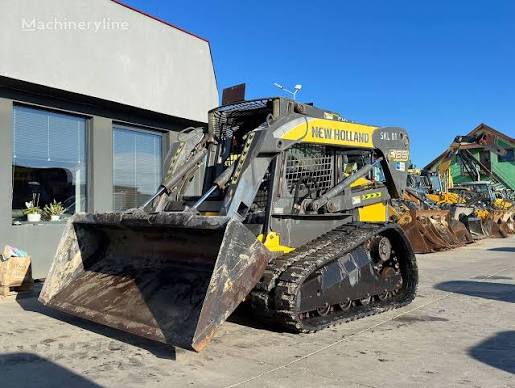

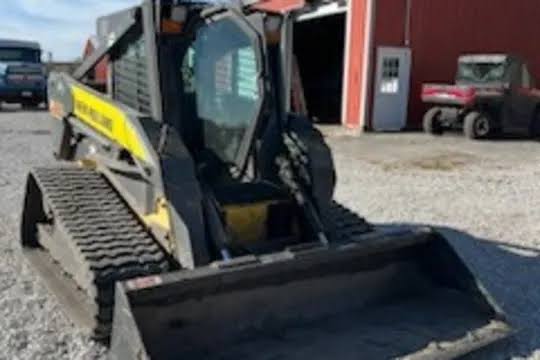

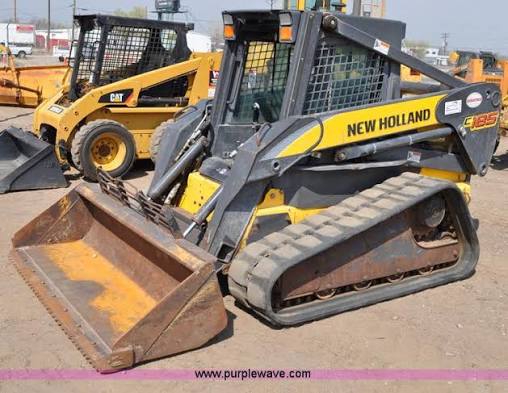

New Holland
C185
- Operating Weight
- 9,154 lb
- Max Speed - high range
- 8.0 mph
- Displacement
- 201 in³
- Gross Power
- 78.0 hp
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 9,154 lb |
|---|---|
| Max Speed - high range | 8.0 mph |
| Max Speed - low range | 5.1 mph |
| Fuel Capacity | 18.0 gal |
| Hydraulic System Fluid Capacity | 15.0 gal |
| Cooling System Fluid Capacity | 4.5 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 A |
| Engine Oil Capacity | 2.1 gal |
Engine
| Engine Model | 334TM2 |
|---|---|
| Displacement | 201 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 78.0 hp |
| Net Power | 72.0 hp |
| Number of Cylinders | 3 |
| Aspiration | Turbochaged |
| Torque Measured @ | 1,400 rpm |
| Peak Torque | 228 lb-ft |
Hydraulic System
| Pump Flow | 19.3 gal/min |
|---|---|
| Relief Valve Pressure | 3,050 psi |
| Pump Type | Gear Type |
Dimensions
| Ground Clearance | 10 in |
|---|---|
| Height - Top of Cab | 78 in |
| Reach at Max Lift and Dump | 33 in |
| Width Over Tracks | 83 in |
| Length with Bucket | 141 in |
| Clearance at Max Lift and Dump | 151 in |
| Turning Radius from Center - inc bucket | 80 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Length of Track on Ground | 65 in |
| Width of Track | 17 in |
| Number of Track Rollers per Side | 4 |
| Track Gauge | 66 in |
Loader
| Bucket Capacity | 1.10 yd³ |
|---|---|
| Tipping Angle | 7,286 ° |
| Operating Load | 2,500 lb |
| Breakout Force | — |
