New Holland

C190

Compact Track Loader

Operating Weight
9,811 lb
Max Speed - high range
8.0 mph
Displacement
275 in³
Gross Power
80.0 hp
All compact track loaders

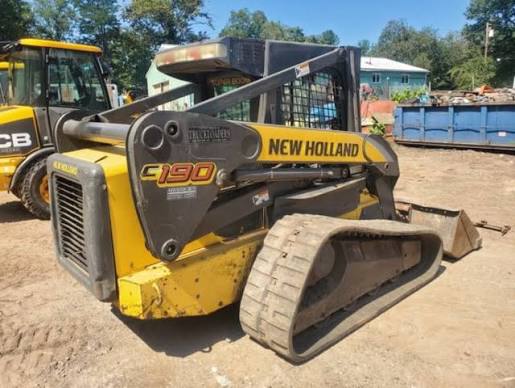

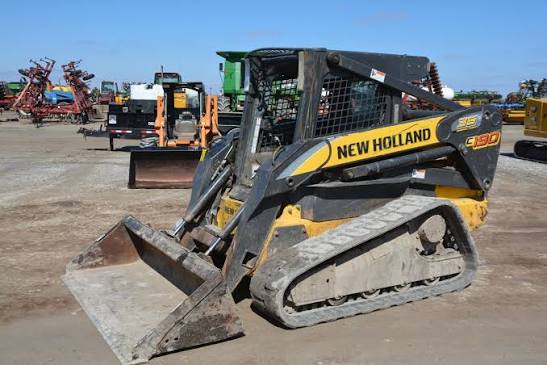

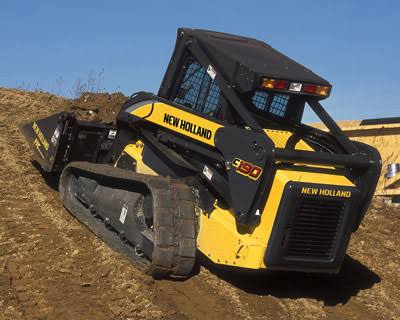

New Holland C190 Compact Track Loader
1 / 5
Image 1 of 5
Image: ironsearch.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,811 lb
Max Speed - high range8.0 mph
Max Speed - low range5.1 mph
Fuel Capacity21.5 gal
Hydraulic System Fluid Capacity15.0 gal
Cooling System Fluid Capacity4.5 gal
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Capacity3.2 gal

Engine

Engine specifications
Engine Model445M2
Displacement275 in³
Power Measured @2,300 rpm
Gross Power80.0 hp
Net Power74.0 hp
Number of Cylinders4
Torque Measured @1,400 rpm
Peak Torque236 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow21.9 gal/min
Relief Valve Pressure3,050 psi
Pump TypeGear Type

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab80 in
Reach at Max Lift and Dump32 in
Width Over Tracks83 in
Length with Bucket149 in
Clearance at Max Lift and Dump154 in
Turning Radius from Center - inc bucket81 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Length of Track on Ground65 in
Width of Track17 in
Number of Track Rollers per Side4
Track Gauge66 in

Loader

Loader specifications
Bucket Capacity1.10 yd³
Tipping Angle8,285 °
Operating Load2,901 lb
Breakout Force—
