New Holland

D150 XLT

Crawler Dozer

Operating Weight
34,569 lb
Max Speed - Forward
6.9 mph
Net Power
140.0 hp
All crawler dozers

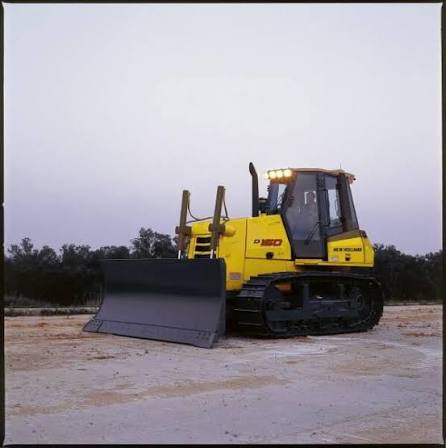

New Holland D150 XLT Crawler Dozer
1 / 5
Image 1 of 5
Image: construction.newholland.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight34,569 lb
Fuel Capacity71.4 gal
Cooling System Fluid Capacity6.7 gal
Final Drives Fluid Capacity6.9 gal
Engine Oil Capacity3.8 gal
Hydraulic Fluid Capacity16.7 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine Model6BTAA5.9
Displacement360 in³
Power Measured @2,200 rpm
Net Power140.0 hp
Number of Cylinders6
AspirationTurbo-aftercooler
Torque Measured @1,300 rpm
Max Torque479 lb-ft

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure2,756 psi
Pump TypeVariable Displacement Pump

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab122 in
Length of Track on Ground118 in
Width Over Tracks95 in
Length w/ Blade210 in
Length w/o Blade158 in

Transmission

Transmission specifications
Max Speed - Forward6.9 mph
Max Speed - Reverse8.1 mph
Transmission TypeFull PowerShift CounterShaft Constant Mesh
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge76 in
Number of Track Rollers per Side8
Number of Shoes per Side48
Number of Carrier Rollers per Side2
Standard Shoe Size20 in
Ground Contact Area46,268 in³

Standard Blade

Standard Blade specifications
Width126 in
Height43 in
Capacity4.20 yd³
Blade Angle (both directions)5 °
