New Holland

DC150 XLT

Crawler Dozer

Operating Weight
34,513 lb
Max Speed - Forward
6.3 mph
Gross Power
140.0 hp
Net Power
140.0 hp
All crawler dozers

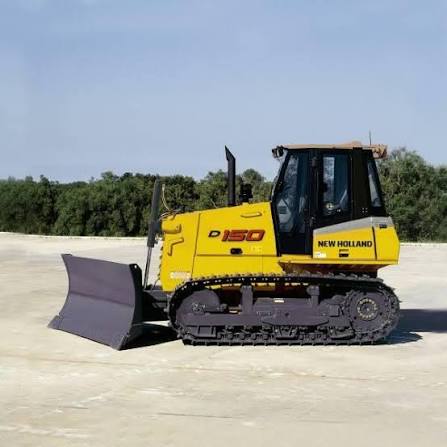

New Holland DC150 XLT Crawler Dozer
1 / 5
Image 1 of 5
Image: construction.newholland.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight34,513 lb
Fuel Capacity71.4 gal
Cooling System Fluid Capacity7.4 gal
Final Drives Fluid Capacity10.1 gal
Engine Oil Capacity3.7 gal
Hydraulic Fluid Capacity16.7 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine ModelCummins 65.9
Displacement360 in³
Gross Power140.0 hp
Net Power140.0 hp
AspirationTurbocharged
Max Torque443 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity39.7 gal/min
Relief Valve Pressure2,755 psi
Pump Typeclosed-center load sensing system

Dimensions

Dimensions specifications
Height - Top of Cab122 in
Length of Track on Ground101 in
Width Over Tracks126 in
Length w/ Blade210 in

Transmission

Transmission specifications
Max Speed - Forward6.3 mph
Max Speed - Reverse7.5 mph
Transmission Typefull power shift countershaft constant mesh
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge76 in
Number of Track Rollers per Side8
Number of Shoes per Side48
Standard Shoe Size22 in
Ground Contact Area5,089 in³
Track Pitch7 in

Standard Blade

Standard Blade specifications
Width126 in
Height43 in
Capacity4.20 yd³
