New Holland
Caterpillar
302.5C

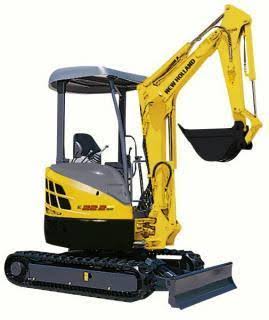

Mini Excavator
89 specifications
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 9,789 lb |
|---|---|
| Fuel Capacity | 14.1 gal |
| Hydraulic Pump Flow Capacity | 30.2 gal/min |
| Hydraulic System Fluid Capacity | 16.7 gal |
| Hydraulic System Relief Valve Pressure | 3,336 psi |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 A |
| Engine Oil Capacity | 2.0 gal |
| Cooling System Fluid Capacity | 1.6 gal |
Engine
| Engine Model | 4TNV88-XYB |
|---|---|
| Displacement | 134 in³ |
| Power Measured @ | 2,400 rpm |
| Net Power | 43.0 hp |
| Number of Cylinders | 4 |
Dimensions
| Height - Top of Cab | 103 in |
|---|---|
| Length of Track on Ground | 72 in |
| Tail Swing Radius | 40 in |
| Width to Outside of Tracks | 78 in |
| Removal Counterweight Clearance | 25 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 62 in |
| Max Travel Speed | 2.9 mph |
| Shoe Size | 16 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 134 in |
|---|---|
| Max Reach Along Ground | 217 in |
| Max Vertical Wall Digging Depth | 104 in |
| Max Loading Height | 155 in |
| Shipping Length of Unit | 198 in |
| Max Cutting Height | 217 in |
| Shipping Height of Unit | 103 in |
Bucket
| Reference Bucket Capacity | 0.20 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.30 yd³ |
| Minimum Bucket Capacity | 0.20 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 145 in |
|---|---|
| Max Cutting Height | 224 in |
| Max Loading Height | 162 in |
| Max Vertical Wall Digging Depth | 115 in |
| Max Reach Along Ground | 228 in |
| Shipping Height of Unit | 103 in |
| Shipping Length of Unit | 198 in |
