New Holland

E50B

Mini Excavator

Operating Weight
10,384 lb
Max Digging Depth
142 in
Net Power
40.8 hp
All mini excavators

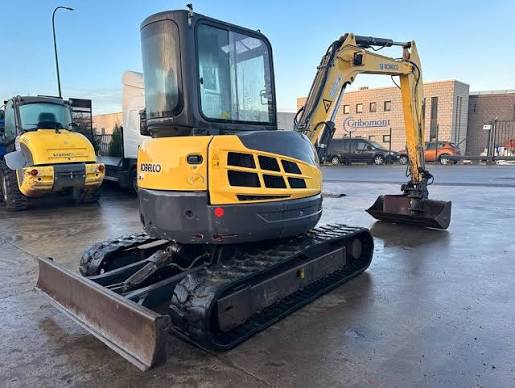

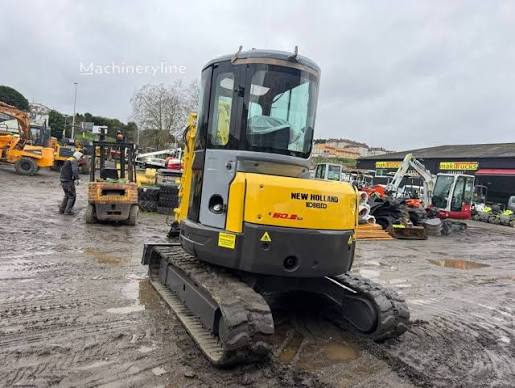

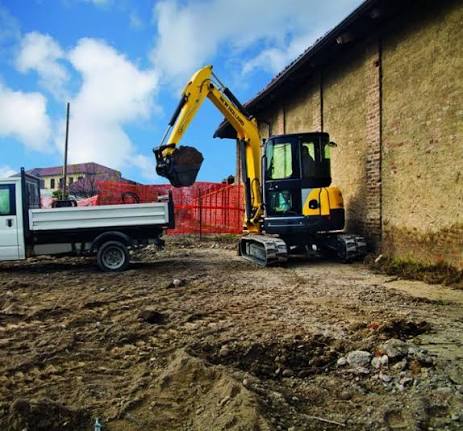

New Holland E50B Mini Excavator
1 / 5
Image 1 of 5
Image: sodineg.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,384 lb
Hydraulic Pump Flow Capacity34.4 gal/min
Hydraulic System Relief Valve Pressure3,336 psi

Engine

Engine specifications
Engine Model4TNV88-XYB
Displacement134 in³
Power Measured @2,400 rpm
Net Power40.8 hp
Number of Cylinders4
MakeYanmar

Dimensions

Dimensions specifications
Ground Clearance15 in
Tail Swing Radius40 in
Width to Outside of Tracks78 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.9 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth142 in
Max Reach Along Ground227 in
Max Vertical Wall Digging Depth111 in
Max Loading Height162 in
Shipping Length of Unit206 in
Shipping Height of Unit103 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³
