New Holland

E70

Excavator

Operating Weight
16,400 lb
Max Digging Depth
178 in
Net Power
54.0 hp
All excavators

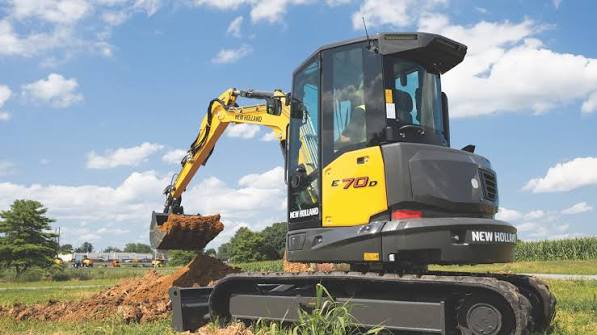

New Holland E70 Excavator
1 / 5
Image 1 of 5
Image: cjleonard.co.uk

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,400 lb
Fuel Capacity22.5 gal
Hydraulic Pump Flow Capacity52.9 gal/min
Hydraulic System Fluid Capacity25.1 gal
Hydraulic System Relief Valve Pressure4,250 psi
Operating Voltage24 V
Alternator Supplied Amperage30 A

Engine

Engine specifications
Engine ModelA-4JB1
Displacement169 in³
Power Measured @2,100 rpm
Net Power54.0 hp
Number of Cylinders4
AspirationNatural

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab102 in
Tail Swing Radius47 in
Width to Outside of Tracks97 in
Removal Counterweight Clearance30 in

Undercarriage

Undercarriage specifications
Ground Pressure3 psi
Track Gauge74 in
Max Travel Speed3.4 mph
Shoe Size24 in
Drawbar Pull15,500 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth178 in
Max Reach Along Ground259 in
Max Loading Height214 in
Max Vertical Wall Digging Depth156 in
Max Cutting Height295 in
Shipping Length of Unit246 in
Shipping Height of Unit102 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
Swing Torque14,060 lb-ft
