New Holland

E70SR

Excavator

Operating Weight
15,543 lb
Max Digging Depth
162 in
Max Digging Depth
179 in
Net Power
55.0 hp
All excavators

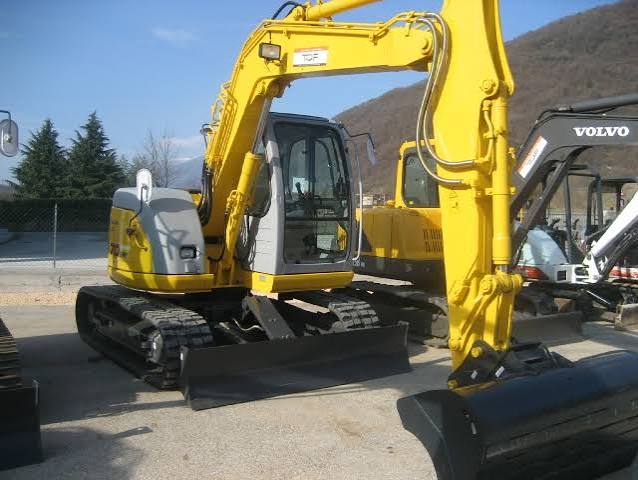

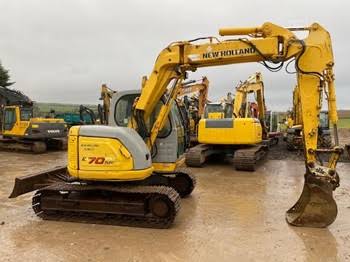

New Holland E70SR Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,543 lb
Fuel Capacity22.5 gal
Hydraulic Pump Flow Capacity34.9 gal/min
Hydraulic System Fluid Capacity20.7 gal
Hydraulic System Relief Valve Pressure4,351 psi
Engine Oil Capacity2.7 gal
Cooling System Fluid Capacity2.7 gal
Operating Voltage24 V
Swing Drive Fluid Capacity0.4 gal
Alternator Supplied Amperage30 A

Engine

Engine specifications
Engine Model- CC - 4JG1
Displacement187 in³
Power Measured @2,100 rpm
Net Power55.0 hp
Number of Cylinders4
AspirationNatural

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab103 in
Tail Swing Radius47 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance30 in

Undercarriage

Undercarriage specifications
Ground Pressure3 psi
Track Gauge74 in
Number of Track Rollers per Side5
Max Travel Speed3.3 mph
Shoe Size24 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth162 in
Max Reach Along Ground244 in
Max Loading Height202 in
Max Vertical Wall Digging Depth141 in
Max Cutting Height283 in
Shipping Length of Unit228 in
Shipping Height of Unit103 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.50 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth179 in
Max Vertical Wall Digging Depth157 in
Max Cutting Height296 in
Max Loading Height215 in
Max Reach Along Ground259 in
Shipping Height of Unit103 in
