New Holland

E80

Excavator

Operating Weight
17,600 lb
Max Digging Depth
183 in
Net Power
54.0 hp
All excavators

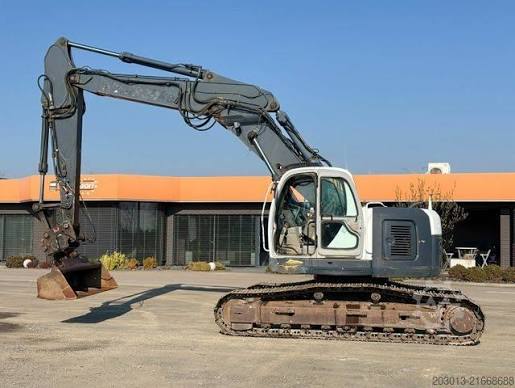

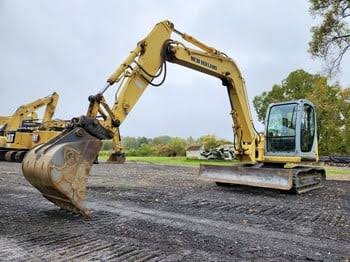

New Holland E80 Excavator
1 / 5
Image 1 of 5
Image: machineryline.co.ug

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,600 lb
Fuel Capacity26.0 gal
Hydraulic Pump Flow Capacity52.9 gal/min
Hydraulic System Fluid Capacity31.0 gal
Hydraulic System Relief Valve Pressure4,250 psi
Operating Voltage12 V
Alternator Supplied Amperage30 A

Engine

Engine specifications
Engine ModelA-4JB1
Displacement169 in³
Power Measured @2,100 rpm
Net Power54.0 hp
Number of Cylinders4
AspirationNatural

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab102 in
Tail Swing Radius66 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance31 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge74 in
Max Travel Speed3.1 mph
Shoe Size24 in
Drawbar Pull15,421 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth183 in
Max Reach Along Ground294 in
Max Loading Height207 in
Max Vertical Wall Digging Depth154 in
Max Cutting Height289 in
Shipping Length of Unit258 in
Shipping Height of Unit95 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
Swing Torque14,060 lb-ft
