New Holland

E805

Excavator

Operating Weight
174,165 lb
Max Digging Depth
343 in
Max Digging Depth
373 in
Net Power
462.0 hp
All excavators

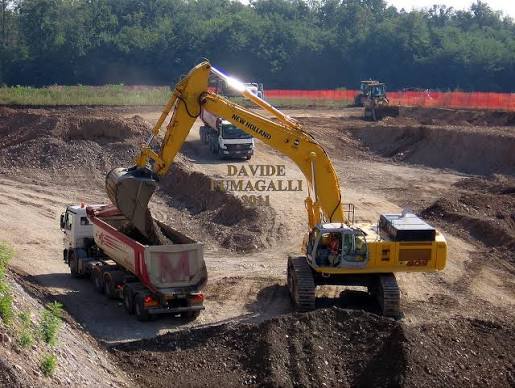

New Holland E805 Excavator
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Operating Weight174,165 lb
Fuel Capacity237.8 gal
Hydraulic Pump Flow Capacity264.2 gal/min
Hydraulic System Fluid Capacity190.3 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity8.8 gal
Cooling System Fluid Capacity26.5 gal
Operating Voltage24 V
Alternator Supplied Amperage90 A

Engine

Engine specifications
Engine Model6WG1TC
Displacement952 in³
Power Measured @1,800 rpm
Net Power462.0 hp
Aspirationturbocharged intercooler

Dimensions

Dimensions specifications
Ground Clearance36 in
Height - Top of Cab150 in
Length of Track on Ground200 in
Tail Swing Radius162 in
Width to Outside of Tracks162 in
Removal Counterweight Clearance64 in

Undercarriage

Undercarriage specifications
Ground Pressure16 psi
Track Gauge137 in
Number of Track Rollers per Side9
Max Travel Speed2.7 mph
Shoe Size26 in
Number of Carrier Rollers per Side3

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth343 in
Max Reach Along Ground546 in
Max Loading Height350 in
Max Vertical Wall Digging Depth254 in
Max Cutting Height509 in
Shipping Length of Unit514 in
Shipping Height of Unit190 in

Bucket

Bucket specifications
Reference Bucket Capacity3.20 yd³
Maximum Bucket Capacity6.61 yd³
Minimum Bucket Capacity3.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth373 in
Max Vertical Wall Digging Depth282 in
Max Cutting Height519 in
Max Loading Height361 in
Max Reach Along Ground574 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth420 in
Max Cutting Height534 in
Max Loading Height377 in
Max Vertical Wall Digging Depth328 in
Max Reach Along Ground617 in
