Doosan

DX480LC

Excavator

Operating Weight
104,700 lb
Max Digging Depth
291 in
Max Digging Depth
308 in
Net Power
328.0 hp
All excavators

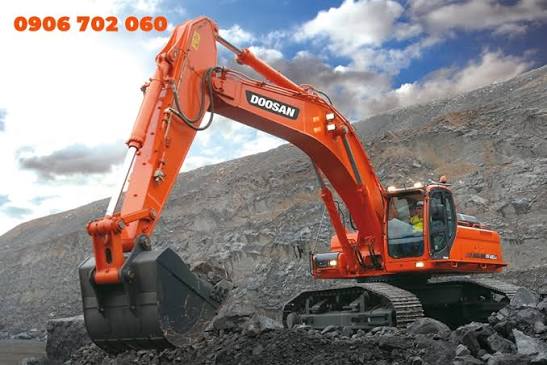

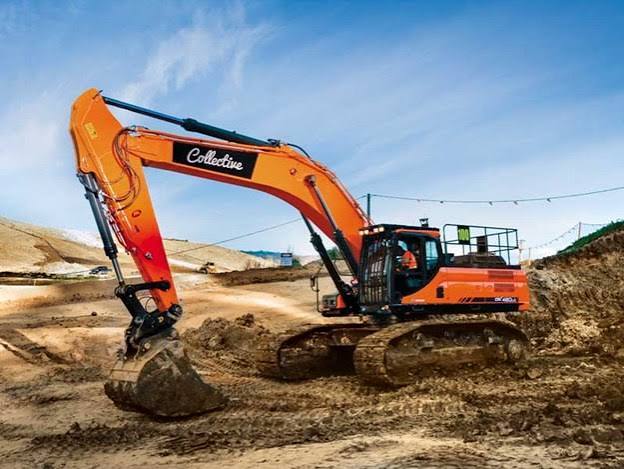

Doosan DX480LC Excavator
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

58 data points

Operating Specifications

Operating Specifications specifications
Operating Weight104,700 lb
Fuel Capacity163.8 gal
Hydraulic Pump Flow Capacity187.6 gal/min
Hydraulic System Fluid Capacity132.1 gal
Hydraulic System Relief Valve Pressure4,554 psi
Engine Oil Capacity11.7 gal
Cooling System Fluid Capacity10.6 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.1 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelDV11
Displacement669 in³
Power Measured @1,800 rpm
Net Power328.0 hp
Torque Measured @1,300 rpm
Max Torque1,136 lb-ft

Dimensions

Dimensions specifications
Ground Clearance31 in
Height - Top of Cab132 in
Length of Track on Ground176 in
Tail Swing Radius146 in
Width to Outside of Tracks132 in
Removal Counterweight Clearance57 in

Undercarriage

Undercarriage specifications
Ground Pressure12 psi
Number of Track Rollers per Side9
Max Travel Speed3.2 mph
Shoe Size24 in
Number of Shoes per Side53
Number of Carrier Rollers per Side3

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth291 in
Max Reach Along Ground451 in
Max Loading Height305 in
Max Vertical Wall Digging Depth161 in
Max Cutting Height431 in
Shipping Length of Unit450 in
Shipping Height of Unit154 in

Bucket

Bucket specifications
Reference Bucket Capacity2.90 yd³
Maximum Bucket Capacity3.20 yd³
Minimum Bucket Capacity2.39 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth308 in
Max Vertical Wall Digging Depth174 in
Max Cutting Height437 in
Max Loading Height311 in
Max Reach Along Ground468 in
Shipping Length of Unit478 in
Shipping Height of Unit148 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth332 in
Max Cutting Height443 in
Max Loading Height317 in
Max Vertical Wall Digging Depth196 in
Max Reach Along Ground490 in
Shipping Length of Unit481 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth309 in
Max Cutting Height431 in
Max Reach Along Ground469 in
Max Loading Height309 in
Max Vertical Wall Dig Depth210 in
Shipping Length of Unit478 in
