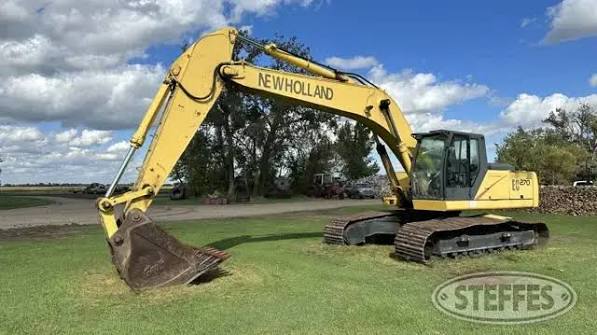

New Holland
EC270
- Operating Weight
- 63,493 lb
- Max Digging Depth
- 260 in
- Max Digging Depth
- 280 in
- Net Power
- 194.0 hp
1 / 5
Image 1 of 5
Specifications
51 data points
Operating Specifications
| Operating Weight | 63,493 lb |
|---|---|
| Fuel Capacity | 111.0 gal |
| Hydraulic Pump Flow Capacity | 37.5 gal/min |
| Hydraulic System Fluid Capacity | 114.0 gal |
| Hydraulic System Relief Valve Pressure | 5,075 psi |
| Engine Oil Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 9.3 gal |
| Swing Drive Fluid Capacity | 1.0 gal |
Engine
| Engine Model | 6CT 8.3C |
|---|---|
| Displacement | 506 in³ |
| Net Power | 194.0 hp |
| Aspiration | Turbo Charged |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 121 in |
| Length of Track on Ground | 157 in |
| Tail Swing Radius | 119 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 46 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 103 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.1 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 50 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 57,776 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 260 in |
|---|---|
| Max Reach Along Ground | 402 in |
| Max Loading Height | 272 in |
| Max Vertical Wall Digging Depth | 260 in |
| Max Cutting Height | 386 in |
| Shipping Length of Unit | 410 in |
| Shipping Height of Unit | 132 in |
Bucket
| Reference Bucket Capacity | 1.50 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.20 yd³ |
| Minimum Bucket Capacity | 0.99 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 280 in |
|---|---|
| Max Vertical Wall Digging Depth | 280 in |
| Max Cutting Height | 378 in |
| Max Loading Height | 272 in |
| Max Reach Along Ground | 418 in |
| Shipping Length of Unit | 410 in |
| Shipping Height of Unit | 127 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 304 in |
|---|---|
| Max Cutting Height | 386 in |
| Max Loading Height | 280 in |
| Max Vertical Wall Digging Depth | 304 in |
| Max Reach Along Ground | 438 in |
| Shipping Length of Unit | 410 in |
| Shipping Height of Unit | 132 in |
