New Holland
Volvo
ECR355E
Excavator
4 specifications
1 / 5
Image 1 of 5
Specifications
27 data points
Operating Specifications
| Operating Weight | 139,560 lb |
|---|---|
| Fuel Capacity | 237.8 gal |
| Hydraulic Pump Flow Capacity | 238.0 gal/min |
| Hydraulic System Fluid Capacity | 224.4 gal |
| Engine Oil Capacity | 10.6 gal |
| Cooling System Fluid Capacity | 11.9 gal |
| Swing Drive Fluid Capacity | 1.1 gal |
Engine
| Engine Model | N14C |
|---|---|
| Displacement | 854 in³ |
| Net Power | 381.0 hp |
| Aspiration | Turbo Charged |
Dimensions
| Ground Clearance | 35 in |
|---|---|
| Height - Top of Cab | 142 in |
| Length of Track on Ground | 182 in |
| Tail Swing Radius | 151 in |
| Width to Outside of Tracks | 144 in |
| Removal Counterweight Clearance | 64 in |
Undercarriage
| Ground Pressure | 10 psi |
|---|---|
| Shoe Size | 35 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 324 in |
|---|---|
| Max Reach Along Ground | 504 in |
| Max Loading Height | 347 in |
| Max Vertical Wall Digging Depth | 178 in |
| Max Cutting Height | 316 in |
| Shipping Length of Unit | 516 in |
| Shipping Height of Unit | 158 in |
Swing Mechanism
| Swing Speed | 5 rpm |
|---|

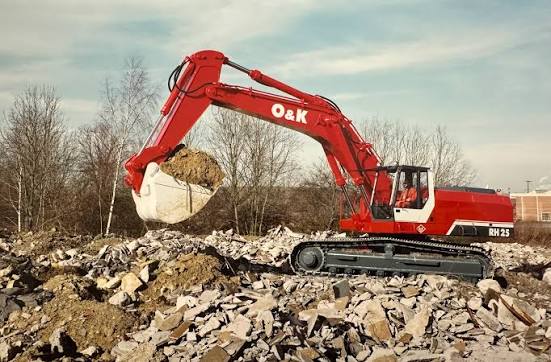

Comparable machines
