Caterpillar

235

Excavator

Operating Weight
84,431 lb
Max Digging Depth
271 in
Max Digging Depth
289 in
Net Power
195.0 hp
All excavators

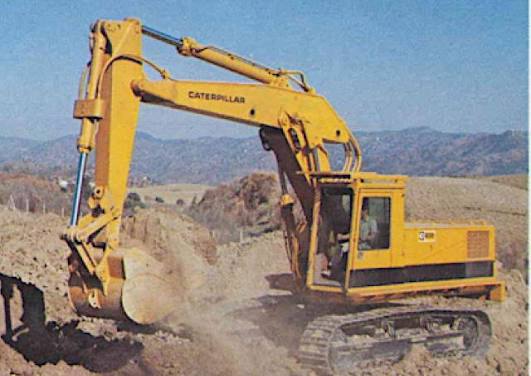

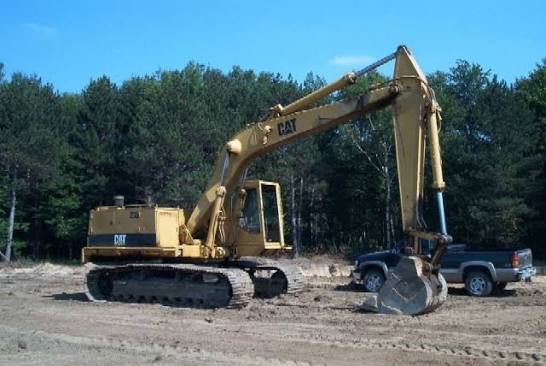

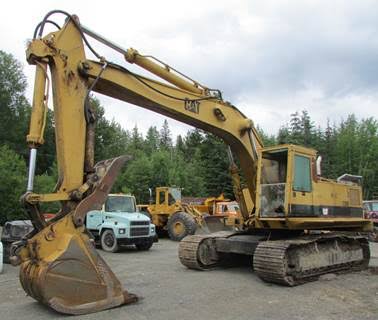

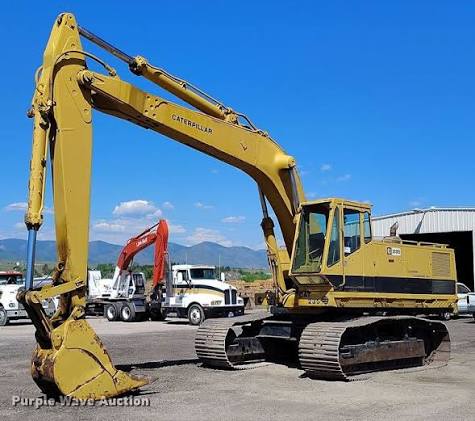

Caterpillar 235 Excavator
1 / 5
Image 1 of 5
Image: vannattabros.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight84,431 lb
Fuel Capacity104.9 gal
Hydraulic Pump Flow Capacity190.3 gal/min
Hydraulic System Relief Valve Pressure1,000 psi

Engine

Engine specifications
Engine Model3306
Displacement641 in³
Power Measured @2,000 rpm
Net Power195.0 hp

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab134 in
Length of Track on Ground199 in
Tail Swing Radius131 in
Width to Outside of Tracks143 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Track Gauge107 in
Max Travel Speed1.5 mph
Shoe Size30 in
Drawbar Pull59,100 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth271 in
Max Reach Along Ground421 in
Max Loading Height247 in
Max Vertical Wall Digging Depth186 in
Max Cutting Height373 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth289 in
Max Vertical Wall Digging Depth210 in
Max Cutting Height378 in
Max Loading Height251 in
Max Reach Along Ground438 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth319 in
Max Cutting Height397 in
Max Loading Height269 in
Max Vertical Wall Digging Depth258 in
Max Reach Along Ground469 in
