New Holland

F200

Motor Grader

Max Operation Weight - Total
38,030 lb
All motor graders

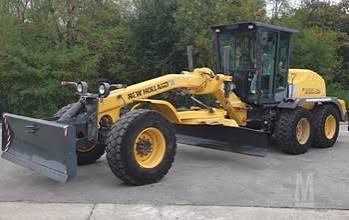

New Holland F200 Motor Grader
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

54 data points

Operating Specifications

Operating Specifications specifications
Max Operation Weight - Total38,030 lb
Max Operation Weight - Front Axle11,250 lb
Max Operation Weight - Rear Axle26,780 lb
Tire Size14.00 x 24 (10PR)
Fuel Capacity90.1 gal
Hydraulic System Fluid Capacity25.3 gal
Tandem Case Fluid Capacity (each)6.1 gal
Operating Voltage24 V
Cooling System Fluid Capacity10.6 gal
Alternator Supplied Amperage70 A
Transmission Fluid Capacity5.9 gal
Circle Gearbox Fluid Capacity0.8 gal
Rear Diff/Final Drive Fluid Capacity6.7 gal
Oil System Fluid Capacity5.1 gal

Engine

Engine specifications
Engine Model6 CTAA 8.3 Tier 2
Displacement507 in³
Power Measured @2,200 rpm
Number of Cylinders6
Aspirationturbocharged
Net Torque Gears 7-8200 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow49.2 gal/min
Pump TypeFull Hydraulic Load Sensing
Relief Valve Pressure2,596 psi

Dimensions

Dimensions specifications
Wheelbase246 in
Overall Length337 in
Width Over Tires104 in
Height to Top of Isomount Cab132 in
Blade Base102 in
Tandem Axle Wheelbase64 in
Rear Ground Clearance25 in

Transmission

Transmission specifications
Max Speed - Forward26.8 mph
Max Speed - Reverse19.1 mph
Number of Gears - Forward8
Number of Gears - Reverse4
Transmission TypeDirect Drive PowerShift

Moldboard

Moldboard specifications
Moldboard Height27 in
Moldboard Width168 in
Moldboard Thickness1 in
Side Shift Left21 in
Side Shift Right27 in
Max Depth of Cut28 in
Blade Down Pressure23,997 lb

Circle

Circle specifications
Max Lift Above Ground18 in
Max Reach Outside Tires - Left78 in
Max Reach Outside Tires - Right86 in
Diameter69 in
Blade Tip Angle - Front40 °
Rotation360 °
Blade Tip Angle - Rear5 °

Front Axle

Front Axle specifications
Wheel Lean18 °
Oscillation - Total19 °
Ground Clearance25 in

Steering System

Steering System specifications
Turning Radius288 in
Articulation Angle25 °
