New Holland

L160

Skid Steer Loader

Operating Weight
5,534 lb
Bucket Capacity
0.50 yd³
Max Speed
7.4 mph
All skid steer loaders

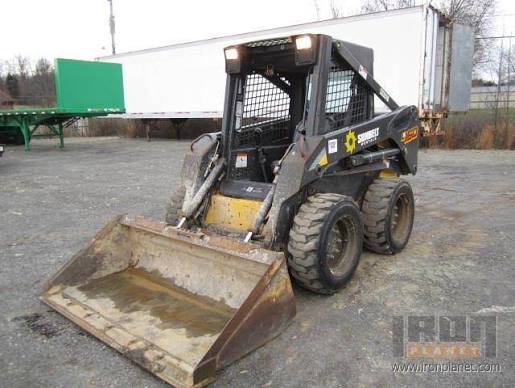

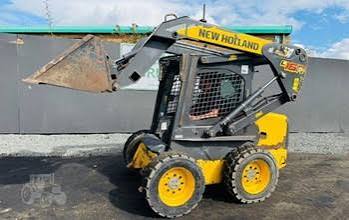

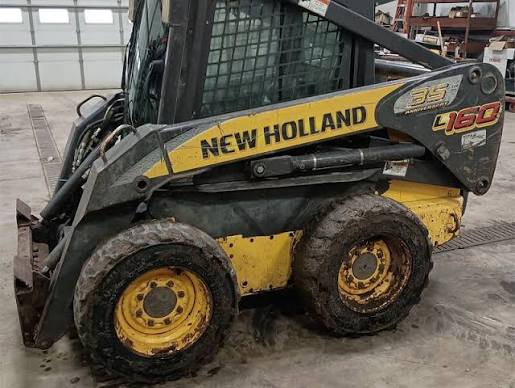

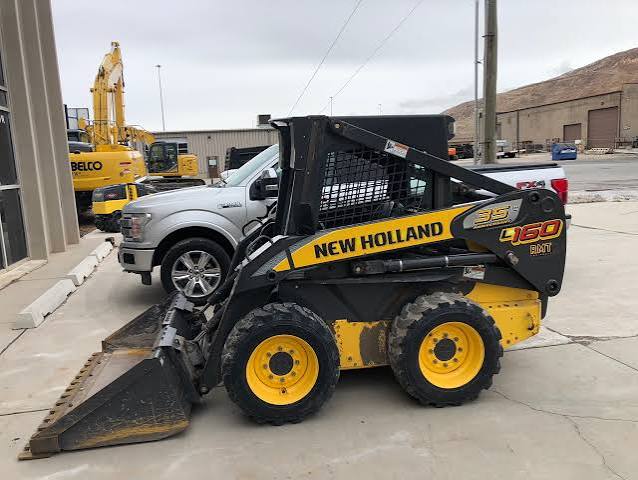

New Holland L160 Skid Steer Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,534 lb
Max Speed7.4 mph
Fuel Capacity14.4 gal
Hydraulic System Fluid Capacity8.7 gal
Tire Size10.00 x 16.5
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Fluid Capacity1.8 gal
Cooling System Fluid Capacity2.7 gal
Chain Box Fluid Capacity - each side3.3 gal

Engine

Engine specifications
Engine ModelN844
Displacement119 in³
Power Measured @2,900 rpm
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.1 gal/min
Relief Valve Pressure2,500 psi
Pump TypeGear type

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab76 in
Wheelbase43 in
Width Over Tires66 in
Reach at Max Lift and Dump29 in
Length with Bucket126 in
Clearance at Max Lift and Dump141 in
Turning Radius from Center - inc bucket67 in

Loader

Loader specifications
Bucket Capacity0.50 yd³
Operating Load Rating1,600 lb
Tipping Angle3,200 °
Breakout Force3,712 psi
