434E
Backhoe Loader
37 specifications
1 / 5

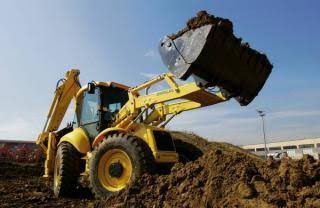

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Fuel Capacity | 34.4 gal |
|---|---|
| Hydraulic System Fluid Capacity | 36.2 gal |
| Cooling System Fluid Capacity | 6.4 gal |
| Tire Size Front - 2wd / 4wd | 16.9-24 (12Ply) |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 4.3 gal |
| Alternator Supplied Amperage | 70 A |
| Turning Radius | 207 in |
| Transmission Fluid Capacity | 4.8 gal |
| Max Weight | 20,283 lb |
Engine
| Engine Model | CNH F4GE0484G*D |
|---|---|
| Displacement | 275 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 110.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged-Intercooled |
| Torque Measured @ | 1,400 rpm |
| Net Max Torque | 261 lb-ft |
Hydraulic System
| Pump Flow Capacity | 42.3 gal/min |
|---|---|
| Relief Valve Pressure | 3,046 psi |
| Pump Type | Load-Sensing / Flow Compensation |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Wheelbase | 88 in |
| Transport Width | 98 in |
| Transport Length | 227 in |
| Height to Top of Suspended Cab | 115 in |
Transmission
| Max Speed | 24.3 mph |
|---|---|
| Max Speed - Reverse | 8.6 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 2 |
| Transmission Type | PowerShuttle |
Tires & Wheels
| Rear Tires Size | 16.9-24 (12ply) |
|---|
General Specifications
| Operating Weight lbs (kg) | 17,200 (7,802) — Starting 2004 Model Year |
|---|---|
| Lift Capacity lbs (kgs) | 7,742 (3,512) — Starting 2004 Model Year |
| Loading Height ft (m) | 12.7 (3.9) — Starting 2004 Model Year |
| 4th Gear Fwd mph (kmh) | 24.4 (39) — Starting 2004 Model Year |
| Breakout Force lbs (kgs) | 12,600 (5,715) — Starting 2004 Model Year |
| Digging Depth ft (m) | 15 (4.7) — Starting 2004 Model Year |
| SAE Net hp (kW) | 103 (77) — Starting 2004 Model Year |
Backhoe
| Dig Depth | 181 in |
|---|---|
| Dig Depth - Extended | 228 in |
| Load Height - Extended | 256 in |
| Reach at Load Height - Extended | 134 in |
Loader
| Clearance at Max Dump Height | 176 in |
|---|---|
| Reach at Max Dump Height | 28 in |
| Dig Depth | 4 in |
