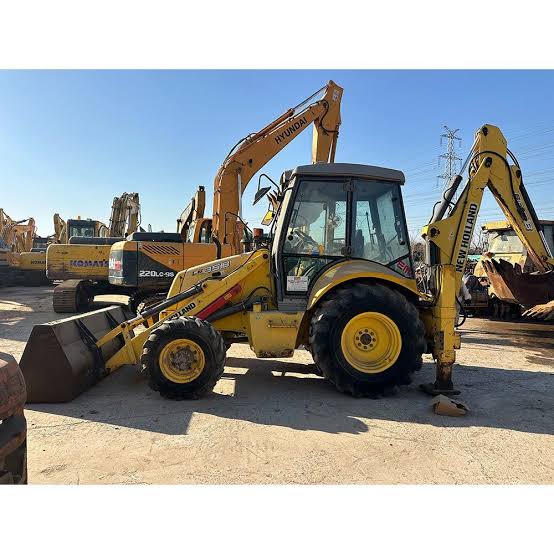

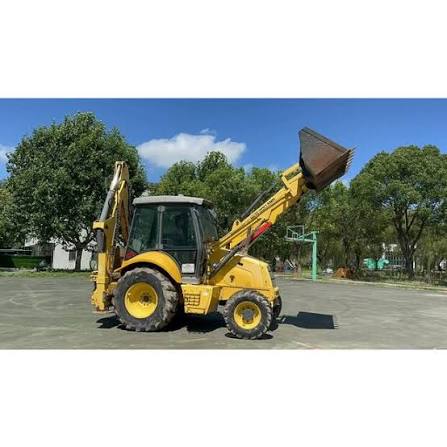

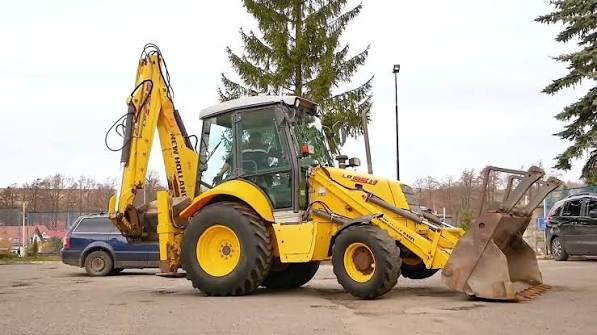

New Holland
Caterpillar
434E
Backhoe Loader
37 specifications
1 / 5
Image 1 of 5
Specifications
40 data points
Operating Specifications
| Fuel Capacity | 35.7 gal |
|---|---|
| Hydraulic System Fluid Capacity | 31.2 gal |
| Cooling System Fluid Capacity | 6.4 gal |
| Tire Size Front - 2wd / 4wd | 12.5 / 70 (10 Ply) |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 3.7 gal |
| Alternator Supplied Amperage | 70 A |
| Transmission Fluid Capacity | 4.8 gal |
| Max Weight | 18,739 lb |
Engine
| Engine Model | CNH F4GE0454C*D |
|---|---|
| Displacement | 275 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 95.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Net Max Torque | 217 lb-ft |
Hydraulic System
| Pump Flow Capacity | 39.9 gal/min |
|---|---|
| Relief Valve Pressure | 3,046 psi |
| Pump Type | Load Sensing / Flow Compensation |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 86 in |
| Transport Width | 96 in |
| Transport Length | 224 in |
| Height to Top of Suspended Cab | 114 in |
Transmission
| Max Speed | 24.2 mph |
|---|---|
| Max Speed - Reverse | 28.9 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | PowerShuttle |
Tires & Wheels
| Rear Tires Size | 18.4 / 26 |
|---|
Backhoe
| Dig Depth | 181 in |
|---|---|
| Reach From Swivel | 231 in |
| Dig Depth - Extended | 228 in |
| Load Height - Extended | 256 in |
| Reach From Swivel - Extended | 275 in |
| Reach at Load Height - Extended | 131 in |
Loader
| Clearance at Max Dump Height | 176 in |
|---|---|
| Reach at Max Dump Height | 29 in |
| Dig Depth | 4 in |
