New Holland

LT185.B

Compact Track Loader

Operating Weight
9,280 lb
Max Speed - high range
8.0 mph
Displacement
207 in³
Gross Power
78.0 hp
All compact track loaders

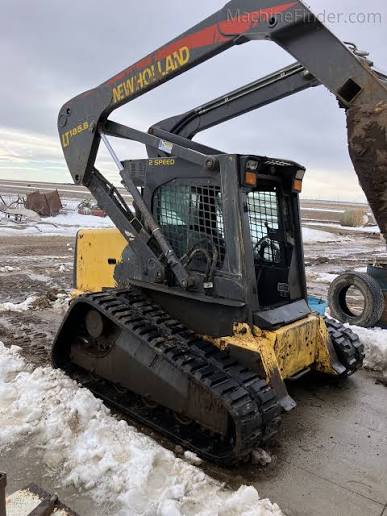

New Holland LT185.B Compact Track Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,280 lb
Max Speed - high range8.0 mph
Max Speed - low range5.1 mph
Fuel Capacity18.0 gal
Hydraulic System Fluid Capacity15.0 gal
Cooling System Fluid Capacity4.5 gal
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Capacity2.2 gal

Engine

Engine specifications
Engine Model334TM2
Displacement207 in³
Gross Power78.0 hp
Net Power72.0 hp
AspirationTurbocharged
Peak Torque228 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow19.3 gal/min
Relief Valve Pressure3,000 psi
Pump TypeGear Pump

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab78 in
Reach at Max Lift and Dump33 in
Width Over Tracks80 in
Length with Bucket139 in
Clearance at Max Lift and Dump101 in
Turning Radius from Center - inc bucket76 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Length of Track on Ground65 in
Width of Track16 in
Number of Track Rollers per Side4
Track Gauge66 in

Loader

Loader specifications
Tipping Angle7,286 °
Operating Load2,500 lb
Breakout Force—
