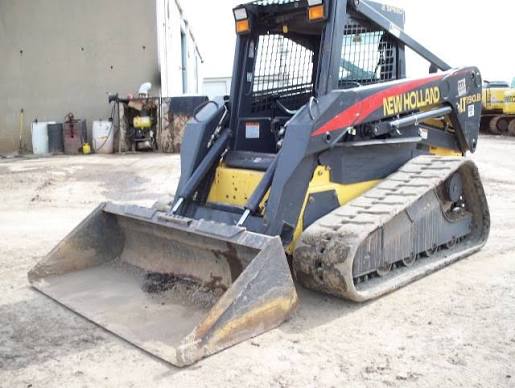

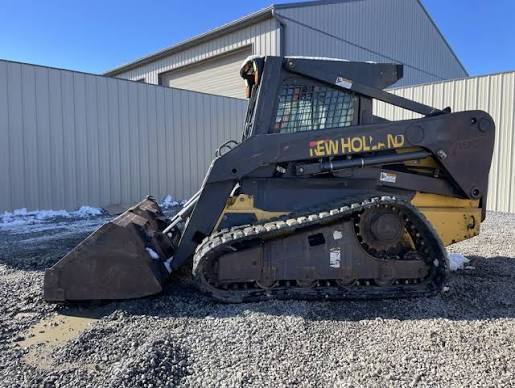

New Holland
LT190.B
- Operating Weight
- 9,295 lb
- Max Speed - high range
- 8.0 mph
- Displacement
- 274 in³
- Gross Power
- 81.0 hp
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 9,295 lb |
|---|---|
| Max Speed - high range | 8.0 mph |
| Max Speed - low range | 5.1 mph |
| Fuel Capacity | 21.5 gal |
| Hydraulic System Fluid Capacity | 15.0 gal |
| Cooling System Fluid Capacity | 4.5 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 A |
| Engine Oil Capacity | 3.2 gal |
Engine
| Engine Model | 445M2 |
|---|---|
| Displacement | 274 in³ |
| Gross Power | 81.0 hp |
| Net Power | 74.0 hp |
| Aspiration | Natural |
| Peak Torque | 236 lb-ft |
Hydraulic System
| Pump Flow | 21.9 gal/min |
|---|---|
| Relief Valve Pressure | 3,000 psi |
| Pump Type | Gear Pump |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Height - Top of Cab | 80 in |
| Reach at Max Lift and Dump | 32 in |
| Width Over Tracks | 80 in |
| Length with Bucket | 146 in |
| Clearance at Max Lift and Dump | 102 in |
| Turning Radius from Center - inc bucket | 81 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Length of Track on Ground | 65 in |
| Width of Track | 16 in |
| Number of Track Rollers per Side | 4 |
| Track Gauge | 66 in |
Loader
| Tipping Angle | 8,286 ° |
|---|---|
| Operating Load | 2,900 lb |
| Breakout Force | — |
