New Holland

MH2.6

Excavator

Operating Weight
22,046 lb
Net Power
99.0 hp
All excavators

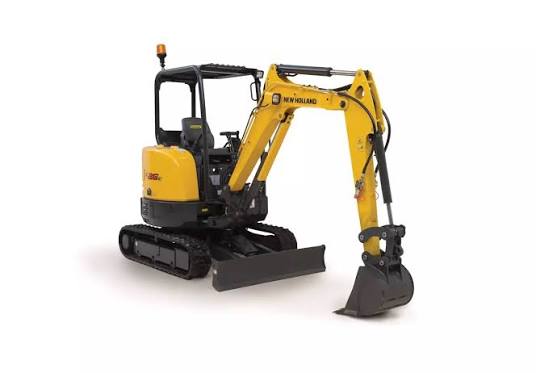

New Holland MH2.6 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,046 lb
Fuel Capacity33.9 gal
Hydraulic Pump Flow Capacity48.1 gal/min
Hydraulic System Fluid Capacity24.9 gal
Engine Oil Capacity3.5 gal
Cooling System Fluid Capacity5.9 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A
Hydraulic Pump TypeGear Pump
Tire Size500/45-20
Oscillating Axle Angle14 °

Engine

Engine specifications
Engine ModelCNH F4BE0484B*
Displacement238 in³
Power Measured @2,100 rpm
Net Power99.0 hp
Number of Cylinders4
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab120 in
Wheelbase88 in
Overall Width7 in
Tail Swing Radius59 in
Upper Structure Clearance44 in

Transmission

Transmission specifications
Max Travel Speed20.6 mph
Transmission TypeHydrostatic Two-Speed 4 Wheels Drive
Drawbar Pull13,938 lb

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
Swing Torque16,964 lb-ft

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth156 in
Max Cutting Height318 in
Max Reach Along Ground306 in
Max Loading Height243 in
Shipping Length of Unit275 in
Shipping Height of Unit120 in
Max Vertical Wall Dig Depth85 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth170 in
Max Cutting Height331 in
Max Reach Along Ground319 in
Max Loading Height256 in
Shipping Height of Unit120 in
Shipping Length of Unit288 in
Max Vertical Wall Dig Depth95 in
