New Holland

MH3.6

Excavator

Operating Weight
27,778 lb
Net Power
117.0 hp
All excavators

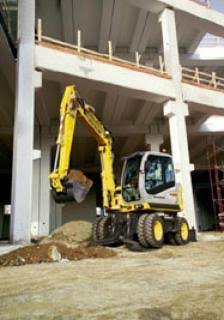

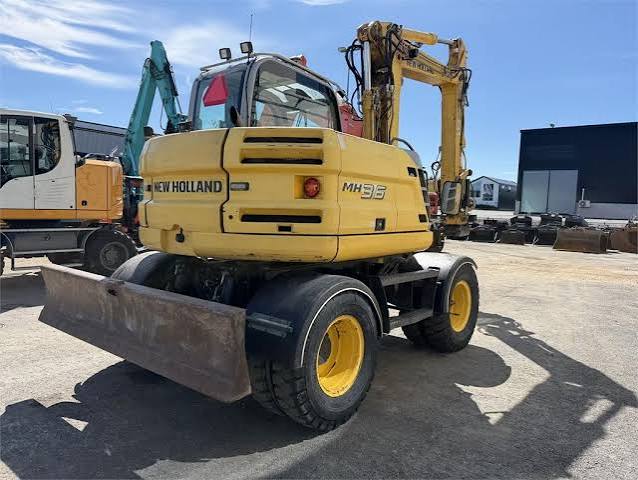

New Holland MH3.6 Excavator
1 / 5
Image 1 of 5
Image: used.liebherr.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,778 lb
Fuel Capacity42.8 gal
Hydraulic Pump Flow Capacity48.1 gal/min
Hydraulic System Fluid Capacity29.1 gal
Engine Oil Capacity3.5 gal
Cooling System Fluid Capacity5.9 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A
Hydraulic Pump TypeGear Pump
Tire Size600/40-22.5
Oscillating Axle Angle14 °

Engine

Engine specifications
Engine ModelCNH F4BE0484B*
Displacement238 in³
Power Measured @2,000 rpm
Net Power117.0 hp
Number of Cylinders4
AspirationTurbocharged with intercooler

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab122 in
Wheelbase95 in
Overall Width8 in
Tail Swing Radius66 in
Upper Structure Clearance46 in

Transmission

Transmission specifications
Max Travel Speed20.6 mph
Transmission Typehydrostatic two-speed 4 wheels drive
Drawbar Pull17,760 lb

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.41 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
Swing Torque19,176 lb-ft

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth178 in
Max Cutting Height346 in
Max Reach Along Ground335 in
Max Loading Height245 in
Shipping Length of Unit305 in
Shipping Height of Unit122 in
Max Vertical Wall Dig Depth102 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth191 in
Max Cutting Height357 in
Max Reach Along Ground348 in
Max Loading Height257 in
Shipping Height of Unit122 in
Shipping Length of Unit317 in
Max Vertical Wall Dig Depth113 in
