New Holland
Terex
HML42
Excavator
32 specifications
1 / 5

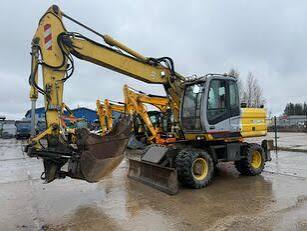

Image 1 of 5
Specifications
57 data points
Operating Specifications
| Operating Weight | 39,794 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Hydraulic Pump Flow Capacity | 66.6 gal/min |
| Hydraulic System Fluid Capacity | 63.5 gal |
| Hydraulic System Relief Valve Pressure | 5,076 psi |
| Engine Oil Capacity | 4.5 gal |
| Cooling System Fluid Capacity | 8.2 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Tire Size | 10.00-20 |
| Oscillating Axle Angle | 14 ° |
Engine
| Engine Model | CNH F4BE0684B*D401 |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 160.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged with aftercooler |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 125 in |
| Wheelbase | 101 in |
| Overall Width | 8 in |
| Tail Swing Radius | 85 in |
| Upper Structure Clearance | 49 in |
| Overall Width - Outriggers Down | 143 in |
Transmission
| Max Travel Speed | 23.0 mph |
|---|
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.29 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 217 in |
|---|---|
| Max Cutting Height | 371 in |
| Max Reach Along Ground | 335 in |
| Max Loading Height | 257 in |
| Shipping Length of Unit | 313 in |
| Shipping Height of Unit | 125 in |
| Max Vertical Wall Dig Depth | 179 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 226 in |
|---|---|
| Max Cutting Height | 377 in |
| Max Reach Along Ground | 343 in |
| Max Loading Height | 263 in |
| Shipping Height of Unit | 125 in |
| Shipping Length of Unit | 313 in |
| Max Vertical Wall Dig Depth | 189 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 236 in |
|---|---|
| Max Cutting Height | 383 in |
| Max Reach Along Ground | 353 in |
| Max Loading Height | 269 in |
| Shipping Height of Unit | 125 in |
| Shipping Length of Unit | 313 in |
| Max Vertical Wall Dig Depth | 198 in |
Boom/Stick Mobile Excavator Option 4
| Max Digging Depth | 251 in |
|---|---|
| Max Cutting Height | 389 in |
| Max Reach Along Ground | 366 in |
| Max Loading Height | 276 in |
| Shipping Height of Unit | 134 in |
| Shipping Length of Unit | 313 in |
| Max Vertical Wall Dig Depth | 210 in |
