New Holland

T6.020

Tractor

Operating Weight
10,911 lb
Displacement
275 in³
Power Measured @
2,200 rpm
Gross Power
110.0 hp
All tractors

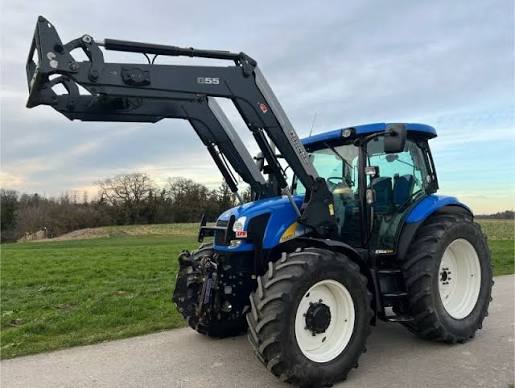

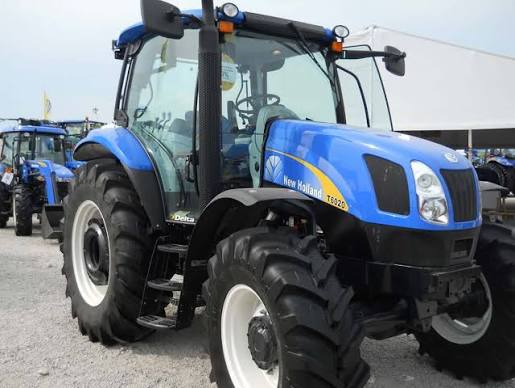

New Holland T6.020 Tractor
1 / 5
Image 1 of 5
Image: agpower.com.au

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,911 lb
Fuel Capacity47.5 gal
3 Point Hitch Lift Capacity @ 24 inches9,619 lb
3 Point Hitch TypeCat II
Alternator Supplied Amperage120 A
Operating Voltage12 V
Hydraulic System Fluid Capacity16.3 gal
Engine Oil Capacity4.0 gal

Engine

Engine specifications
Displacement275 in³
Power Measured @2,200 rpm
Gross Power110.0 hp
Net Power90.0 hp
Number of Cylinders4
Aspirationturbocharged
PTO Power90.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity27.1 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab110 in
Wheelbase94 in
Height - Top of ROPS/FOPS113 in

Transmission

Transmission specifications
Number of Forward Gears16
Transmission Type12x12 SynchroCommand
Number of Reverse Gears16

Production

Production specifications
SeriesT6000 Series
Years Manufactured2,007 – 2,012

Axles

Axles specifications
Axle Diameter4 in
Axle Length98 in
