New Holland

T6.060

Tractor

Operating Weight
10,911 lb
Displacement
275 in³
Power Measured @
2,200 rpm
Gross Power
140.0 hp
All tractors

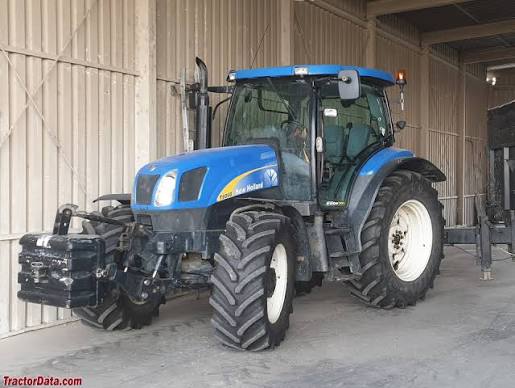

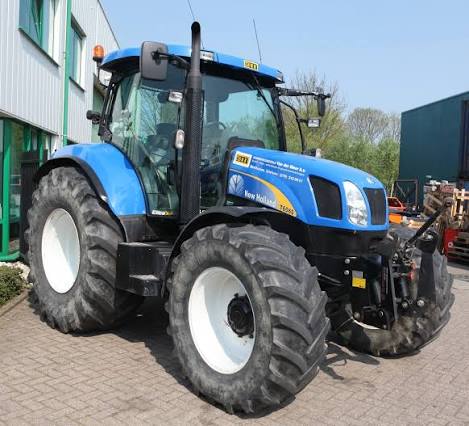

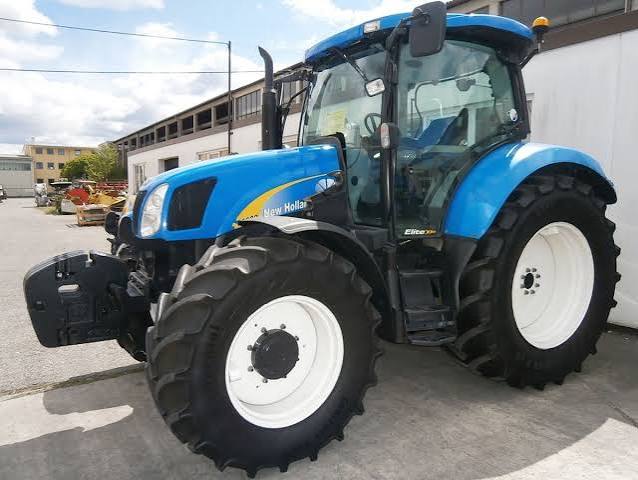

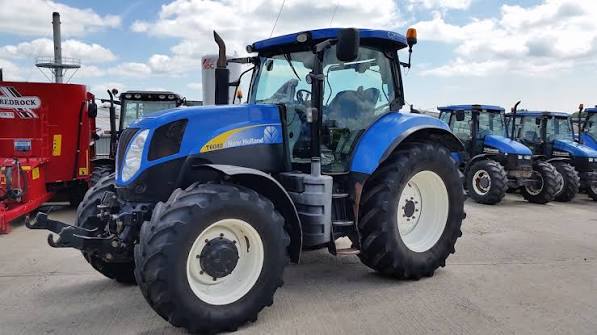

New Holland T6.060 Tractor
1 / 5
Image 1 of 5
Image: agpower.com.au

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,911 lb
Fuel Capacity67.0 gal
3 Point Hitch Lift Capacity @ 24 inches12,212 lb
3 Point Hitch TypeCat II/IIIN
Alternator Supplied Amperage120 A
Operating Voltage12 V
Engine Oil Capacity16.0 gal

Engine

Engine specifications
Displacement275 in³
Power Measured @2,200 rpm
Gross Power140.0 hp
Net Power120.0 hp
Number of Cylinders4
Aspirationturbocharged
PTO Power120.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity37.0 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab115 in
Wheelbase106 in
Height - Top of ROPS/FOPS115 in

Transmission

Transmission specifications
Number of Forward Gears16
Transmission Type16x16 Electroshift
Number of Reverse Gears16

Production

Production specifications
SeriesT6000 Series
Years Manufactured2,007 – 2,012

Axles

Axles specifications
Axle Diameter4 in
Axle Length98 in
