New Holland

TC18

Tractor

Operating Weight
1,438 lb
Displacement
58 in³
Power Measured @
2,600 rpm
Gross Power
18.5 hp
All tractors

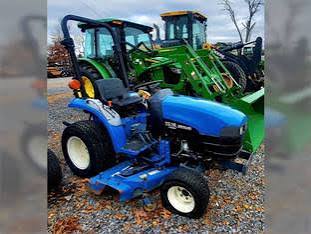

New Holland TC18 Tractor
1 / 5
Image 1 of 5
Image: pineplainstractor.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,438 lb
Fuel Capacity5.3 gal
3 Point Hitch Lift Capacity @ 24 inches1,265 lb
Turning Radius74 in

Engine

Engine specifications
Displacement58 in³
Power Measured @2,600 rpm
Gross Power18.5 hp
Number of Cylinders3
PTO Power15.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity6.8 gal/min

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab80 in
Wheelbase57 in
Overall Length9 in
Tire SizeFront 5x12 Rear 8x16
Width Outside Frame42 in

Transmission

Transmission specifications
Max Speed9.9 mph
Number of Forward Gears6
Transmission TypeManual
Number of Reverse Gears2

Production

Production specifications
SeriesBoomer TC Series
Years Manufactured1,999 – 2,003
