New Holland
TM175
- Operating Weight
- 13,780 lb
- Displacement
- 456 in³
- Power Measured @
- 2,200 rpm
- Gross Power
- 175.0 hp
1 / 5

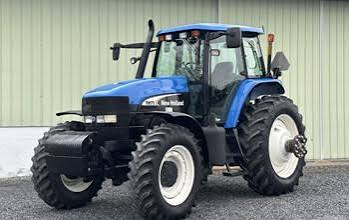

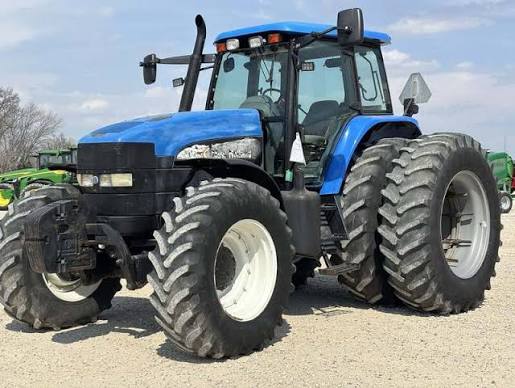

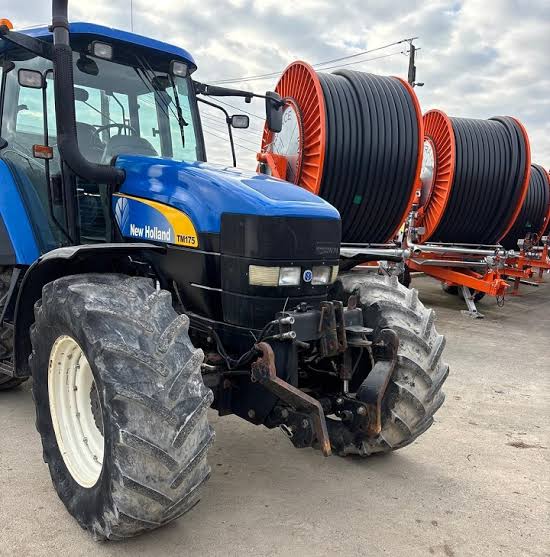

Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 13,780 lb |
|---|---|
| Fuel Capacity | 105.1 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 17,085 lb |
| 3 Point Hitch Type | Cat II/IIIN |
| Alternator Supplied Amperage | 120 A |
| Operating Voltage | 12 V |
| Tire Size Front - 2wd / 4wd | 11x16 |
| Cooling System Fluid Capacity | 6.9 gal |
| Hydraulic System Fluid Capacity | 26.5 gal |
| Engine Oil Capacity | 5.1 gal |
Engine
| Displacement | 456 in³ |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 175.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged air-to-air intercooled |
| Torque Measured @ | 1,400 rpm |
| PTO Power | 145.0 hp |
| Torque Rise | 40.0 % |
Hydraulic System
| Pump Flow Capacity | 31.7 gal/min |
|---|---|
| Number of Remote Control Valves | 4 |
| Relief Valve Pressure | 2,750 psi |
| Relief Valve Setting | 2,750 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 114 in |
| Overall Length | 16 in |
| Tire Size | 14.9R28/18.4R38 |
| Height - Top of ROPS/FOPS | 114 in |
Transmission
| Transmission Type | Power Command powershift |
|---|---|
| Number of Reverse Gears | 6 |
Production
| Series | TM Series |
|---|---|
| Years Manufactured | 2,002 – 2,007 |
