New Holland

W110

Wheel Loader

Operating Weight
23,693 lb
Bucket Capacity - heaped
2.00 yd³
Gross Power
119.0 hp
Net Power
110.0 hp
All wheel loaders

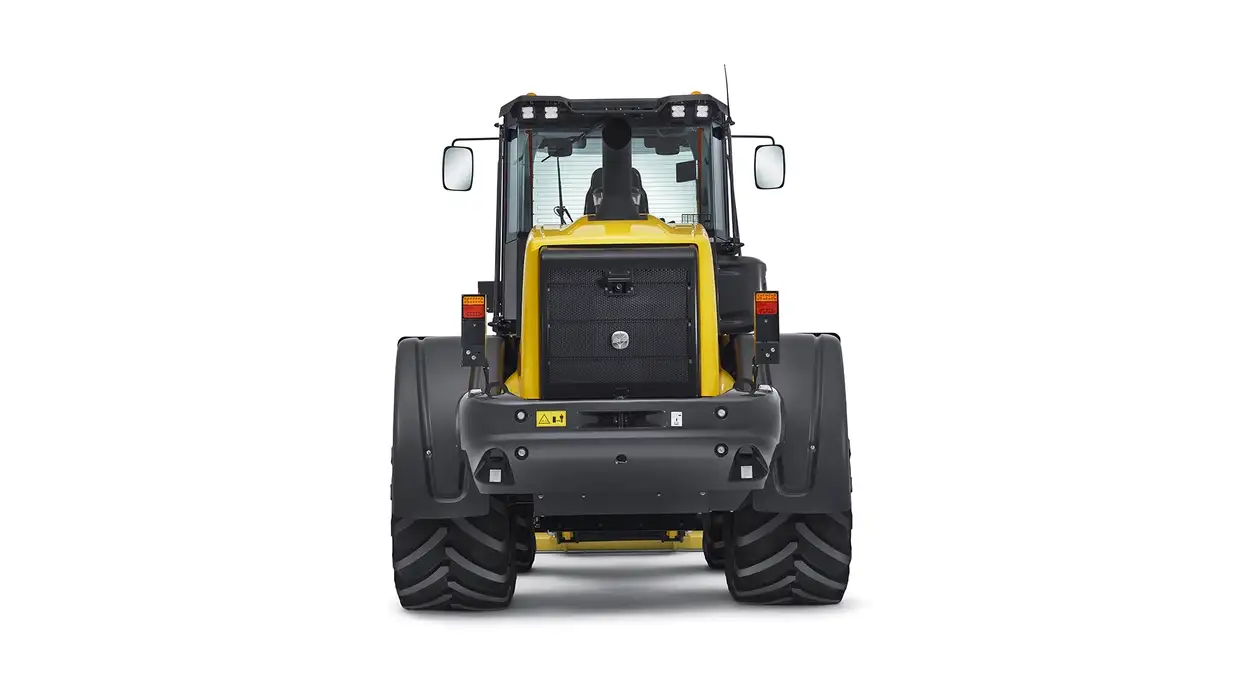

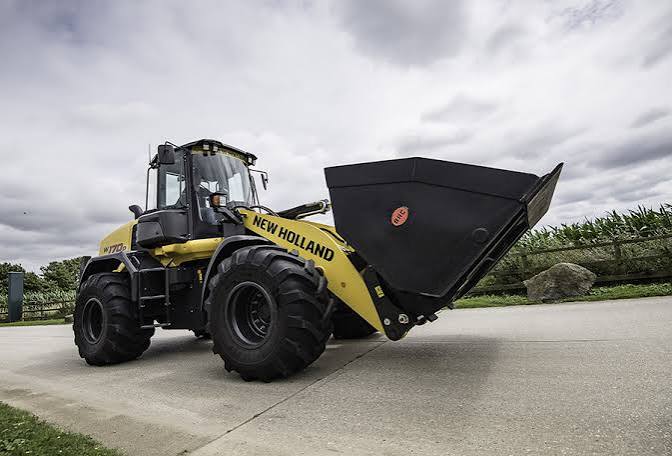

New Holland W110 Wheel Loader
1 / 5
Image 1 of 5
Image: construction.newholland.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,693 lb
Fuel Capacity50.0 gal
Tire Size17.5R25 L2/L3
Hydraulic System Fluid Capacity30.0 gal
Static Tipping Weight18,633 lb
Operating Voltage24 V
Turning Radius194 in
Engine Oil Fluid Capacity12.0 gal
Rear Axle Oscillation40 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity23.2 gal
Rear Axle/Diff Fluid Capacity23.2 gal
Cooling System Fluid Capacity5.8 gal
Transmission Fluid Capacity5.0 gal

Engine

Engine specifications
Engine Model445T/M2
Displacement275 in³
Power Measured @2,000 rpm
Gross Power119.0 hp
Net Power110.0 hp
Number of Cylinders4
AspirationTurbocharged & after cooled
Torque Rise14.0 %

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity35.4 gal/min
Raise Time5.6 s
Lower Time3.7 s
Dump Time1.1 s
Relief Valve Setting2,750 psi
Pump TypeVariable-Displacement Piston Pump

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab130 in
Wheelbase109 in
Width Over Tires91 in
Reach at Max Lift and Dump83 in
Length with Bucket on Ground259 in
Hinge Pin - Max Height143 in

Transmission

Transmission specifications
Max Speed - Forward23.4 mph
Max Speed - Reverse15.2 mph
Transmission TypeCountershaft Power shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped2.00 yd³
Bucket Capacity - struck1.80 yd³
Dump Clearance at Max Raise109 in
Breakout Force17,364 lb
Bucket Width97 in
