New Holland

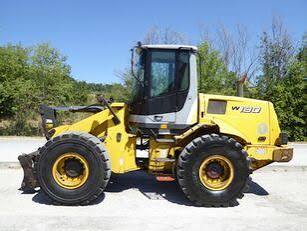

W130BLR
- Operating Weight
- 27,723 lb
- Bucket Capacity - heaped
- 2.60 yd³
- Gross Power
- 149.0 hp
- Net Power
- 138.0 hp
1 / 5
Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 27,723 lb |
|---|---|
| Fuel Capacity | 65.0 gal |
| Tire Size | 17.5x25 L2/L3 |
| Hydraulic System Fluid Capacity | 39.0 gal |
| Static Tipping Weight | 19,374 lb |
| Operating Voltage | 24 V |
| Turning Radius | 234 in |
| Engine Oil Fluid Capacity | 3.5 gal |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 5.9 gal |
| Rear Axle/Diff Fluid Capacity | 5.9 gal |
| Cooling System Fluid Capacity | 9.6 gal |
| Transmission Fluid Capacity | 5.0 gal |
Engine
| Engine Model | FPT 667TA/EDB |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 149.0 hp |
| Net Power | 138.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,000 rpm |
Hydraulic System
| Raise Time | 6.3 s |
|---|---|
| Lower Time | 4.7 s |
| Dump Time | 1.3 s |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 115 in |
| Width Over Tires | 100 in |
| Reach at Max Lift and Dump | 37 in |
| Length with Bucket on Ground | 302 in |
| Hinge Pin - Max Height | 168 in |
Transmission
| Max Speed - Forward | 24.0 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.60 yd³ |
|---|---|
| Bucket Capacity - struck | 2.20 yd³ |
| Dump Clearance at Max Raise | 131 in |
| Bucket Width | 103 in |
