New Holland

W170B

Wheel Loader

Operating Weight
30,707 lb
Bucket Capacity - heaped
3.10 yd³
Gross Power
181.0 hp
Net Power
169.0 hp
All wheel loaders

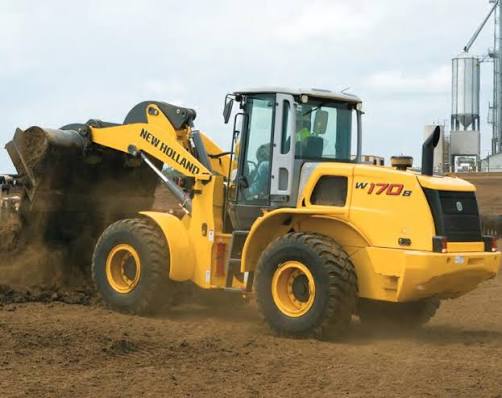

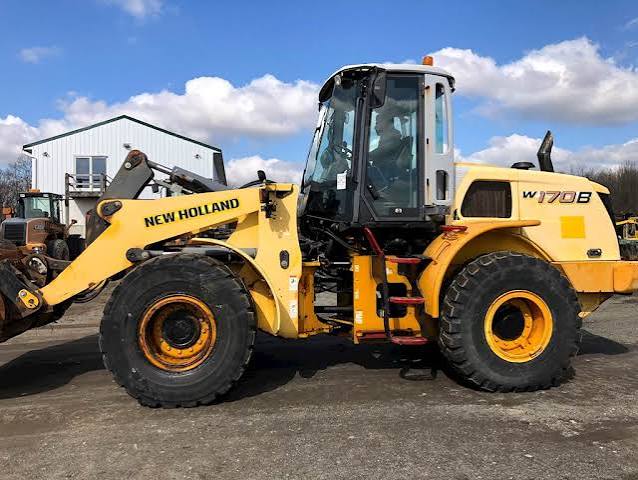

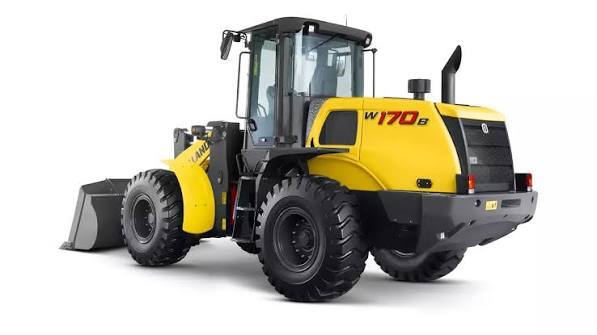

New Holland W170B Wheel Loader
1 / 5
Image 1 of 5
Image: constructionscalemodels.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,707 lb
Fuel Capacity66.9 gal
Tire Size20.5R25 XHATL Michelin Radials
Hydraulic System Fluid Capacity51.0 gal
Static Tipping Weight27,578 lb
Operating Voltage24 V
Turning Radius227 in
Engine Oil Fluid Capacity3.6 gal
Rear Axle Oscillation24 °
Alternator Supplied Amperage70 A
Front Axle/Diff Fluid Capacity8.1 gal
Rear Axle/Diff Fluid Capacity7.3 gal
Cooling System Fluid Capacity9.8 gal
Transmission Fluid Capacity6.8 gal
Rated Bucket Capacity3.00 yd³

Engine

Engine specifications
Engine Model667TA/EB3
Displacement411 in³
Gross Power181.0 hp
Net Power169.0 hp
AspirationTurbochaged air to air cooled
MakeFPT
Torque Rise25.0 %

Weights

Weights specifications
Operating Weight31,000 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity22.6 gal/min
Raise Time5.6 s
Lower Time3.3 s
Dump Time2.4 s
Relief Valve Setting2,800 psi
Pump TypeVariable-Displacement Piston Pump

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab134 in
Wheelbase128 in
Width Over Tires102 in
Reach at Max Lift and Dump43 in
Length with Bucket on Ground300 in
Hinge Pin - Max Height157 in

Transmission

Transmission specifications
Max Speed - Forward23.5 mph
Max Speed - Reverse16.0 mph
Transmission TypeCountershaftPower shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped3.10 yd³
Bucket Capacity - struck2.60 yd³
Dump Clearance at Max Raise118 in
Breakout Force32,958 lb
Bucket Width107 in
