Nissan
Komatsu
FG25T-12
Forklift
32 specifications
1 / 5

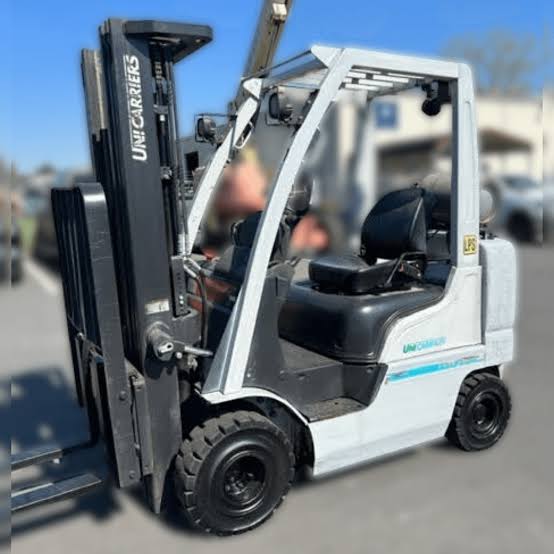

Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 7,904 lb |
|---|---|
| Max Speed | 10.6 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | Pneumatic |
| Drawbar Pull | 3,748 lb |
Engine
| Engine Model | MAP1F2A25LV / DV |
|---|---|
| Displacement | 126 in³ |
| Power Measured @ | 2,700 rpm |
| Torque Measured @ | 2,000 rpm |
| Engine Make | Nissan |
| Power | 55.0 hp |
| Fuel Type | LP - G/LP |
| Torque | 111 lb-ft |
Dimensions
| Ground Clearance | 5 in |
|---|---|
| Wheelbase | 60 in |
| Overall Width | 47 in |
| Turning Radius | 81 in |
| Overall Height - mast lowered | 83 in |
| Length to Fork Face | 94 in |
| Gradeability | 21.0 % |
| Height to Top of Overhead Guard | 83 in |
| Max Fork Height | 131 in |
| Right Angle Stack | 97 in |
| Counterweight Clearance | 43 in |
| Fork Thickness | 2 in |
| Fork Length | 42 in |
| Fork width | 4 in |
Mast
| Load Capacity | 5,000 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.4 mph |
| Lower Speed | 1.1 mph |
