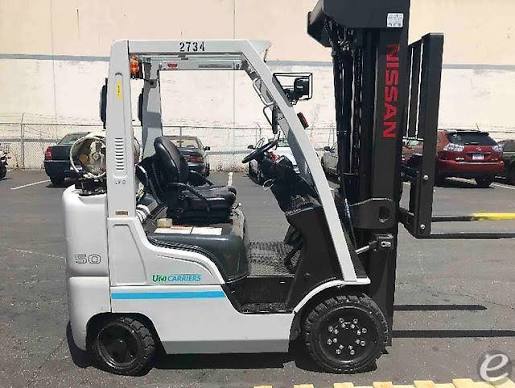

Nissan CF50 Forklift
1 / 5
Image 1 of 5
Image: sunbeltmh.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,940 lb
Max Speed10.6 mph
Number of Front Wheels2
Number of Rear Wheels2
Tire TypeCushion
Drawbar Pull3,638 lb

Engine

Engine specifications
Engine Modelk21
Displacement126 in³
Power Measured @2,700 rpm
Torque Measured @2,000 rpm
Engine MakeNissan
Power55.0 hp
Torque111 lb-ft
Model NameCF50

Dimensions

Dimensions specifications
Ground Clearance3 in
Wheelbase55 in
Overall Width43 in
Turning Radius79 in
Overall Height - mast lowered83 in
Length to Fork Face93 in
Gradeability16.0 %
Height to Top of Overhead Guard83 in
Max Fork Height131 in
Right Angle Stack95 in
Angle of departure30 °
Counterweight Clearance47 in
Overhang Rear20 in
Overhang Front17 in
Fork width4 in
Fork Length42 in
Fork Thickness2 in
Approach Angle26 °

Transmission

Transmission specifications
Transmission TypeAutomatic
Number of Forward / Reverse Speeds1
SteeringFull Hydraulic

Brakes & Steering

Brakes & Steering specifications
Service brakeDrum and Shoe
Parking brakeHand

Mast

Mast specifications
Load Capacity5,000 lb
Load Center24 in
Lift Speed1.3 mph
Mast Tip Forward5 °
Mast Tip Rear10 °
Lower Speed1.1 mph
