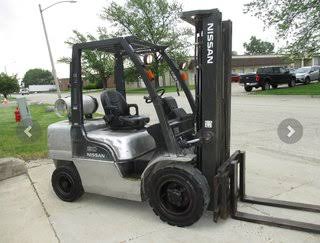

Nissan
Komatsu
FG25T-12
Forklift
32 specifications
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 9,265 lb |
|---|---|
| Max Speed | 12.1 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | pneumatic |
Engine
| Engine Model | MUGIF230JV/LV/DV |
|---|---|
| Displacement | 152 in³ |
| Power Measured @ | 2,700 rpm |
| Torque Measured @ | 1,600 rpm |
| Power | 62.9 hp |
| Torque | 139 lb-ft |
Dimensions
| Ground Clearance | 6 in |
|---|---|
| Wheelbase | 67 in |
| Overall Width | 41 in |
| Turning Radius | 91 in |
| Overall Height - mast lowered | 86 in |
| Length to Fork Face | 106 in |
| Gradeability | 28.0 % |
| Height to Top of Overhead Guard | 85 in |
| Max Fork Height | 131 in |
| Right Angle Stack | 110 in |
| Counterweight Clearance | 44 in |
| Fork Length | 42 in |
| Fork Thickness | 2 in |
| Fork width | 5 in |
Mast
| Load Capacity | 5,997 lb |
|---|---|
| Load Center | 24 in |
| Lift Speed | 1.2 mph |
