Pel-Job

EB14.4

Mini Excavator

Operating Weight
3,395 lb
Max Digging Depth
79 in
Net Power
15.5 hp
All mini excavators

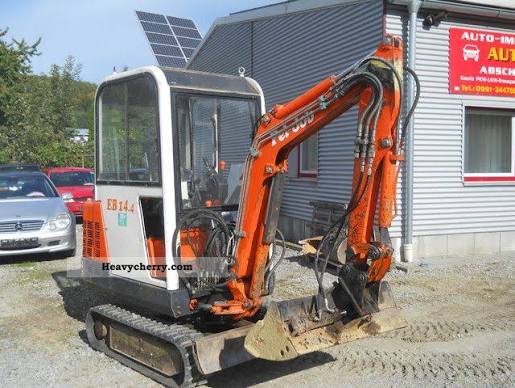

Pel-Job EB14.4 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,395 lb
Hydraulic Pump Flow Capacity8.4 gal/min
Hydraulic System Fluid Capacity10.4 gal
Hydraulic System Relief Valve Pressure3,046 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A

Engine

Engine specifications
Engine ModelL3E
Displacement58 in³
Power Measured @2,200 rpm
Net Power15.5 hp
Number of Cylinders3
AspirationNatural

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab86 in
Length of Track on Ground42 in
Tail Swing Radius43 in
Width to Outside of Tracks46 in
Removal Counterweight Clearance19 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed1.3 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth79 in
Max Reach Along Ground141 in
Max Vertical Wall Digging Depth48 in
Max Loading Height93 in
Shipping Length of Unit132 in
Max Cutting Height125 in
Shipping Height of Unit86 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth86 in
Max Cutting Height133 in
Max Loading Height97 in
Max Vertical Wall Digging Depth61 in
Max Reach Along Ground149 in
Shipping Height of Unit86 in
Shipping Length of Unit137 in
