Pel-Job

EB200XTV

Mini Excavator

Operating Weight
3,847 lb
Max Digging Depth
103 in
Gross Power
19.0 hp
Net Power
15.0 hp
All mini excavators

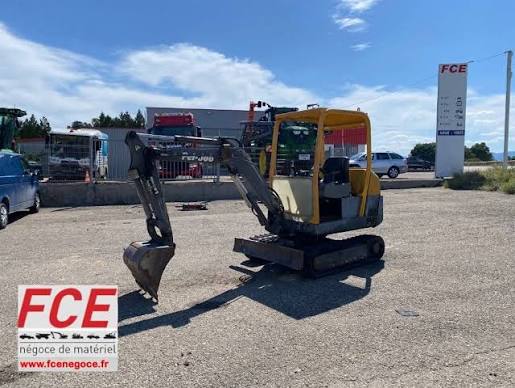

Pel-Job EB200XTV Mini Excavator
1 / 5
Image 1 of 5
Image: miniexcavatorcentre.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,847 lb
Fuel Capacity5.6 gal
Hydraulic Pump Flow Capacity15.1 gal/min
Hydraulic System Fluid Capacity6.1 gal
Hydraulic System Relief Valve Pressure3,046 psi
Operating Voltage12 V

Engine

Engine specifications
Engine ModelL3E
Displacement58 in³
Power Measured @2,800 rpm
Gross Power19.0 hp
Net Power15.0 hp
Torque Measured @1,850 rpm
Max Torque40 lb-ft

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab90 in
Length of Track on Ground49 in
Tail Swing Radius44 in
Width to Outside of Tracks54 in
Removal Counterweight Clearance19 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.0 mph
Shoe Size10 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth103 in
Max Reach Along Ground168 in
Max Vertical Wall Digging Depth72 in
Max Loading Height111 in
Shipping Length of Unit150 in
Max Cutting Height154 in
Shipping Height of Unit90 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
