Pel-Job

EB706

Mini Excavator

Operating Weight
16,425 lb
Max Digging Depth
158 in
Net Power
56.0 hp
All mini excavators

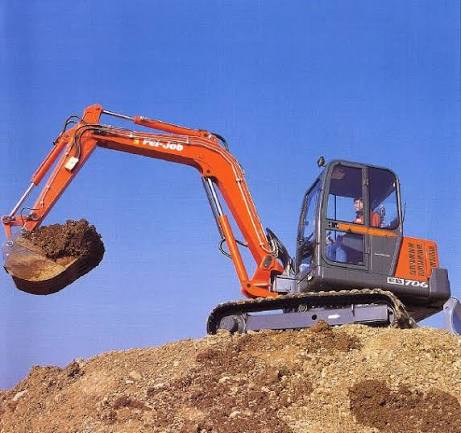

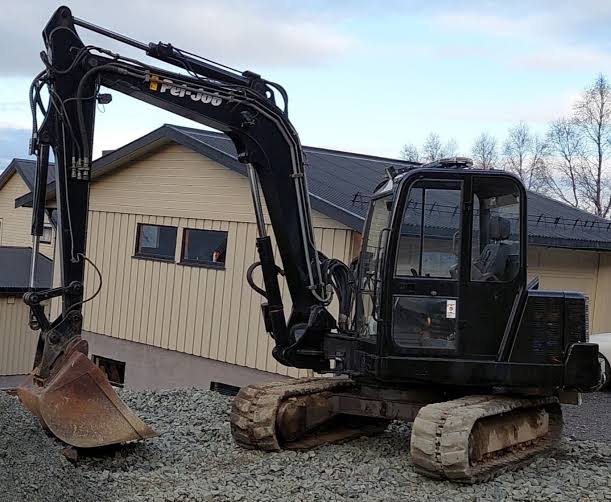

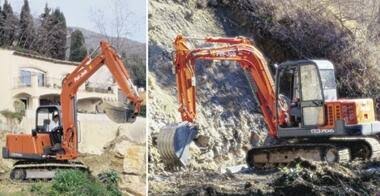

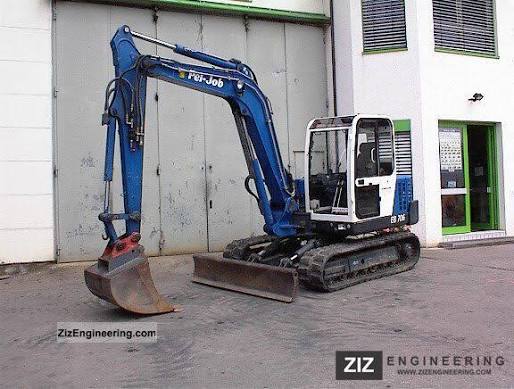

Pel-Job EB706 Mini Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,425 lb
Fuel Capacity29.1 gal
Hydraulic Pump Flow Capacity42.3 gal/min
Hydraulic System Fluid Capacity34.7 gal
Hydraulic System Relief Valve Pressure3,771 psi
Operating Voltage12 V
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelS4S
Displacement203 in³
Power Measured @2,200 rpm
Net Power56.0 hp
Number of Cylinders4
Torque Measured @1,550 rpm
Max Torque150 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab102 in
Tail Swing Radius64 in
Width to Outside of Tracks91 in
Removal Counterweight Clearance29 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Max Travel Speed3.2 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth158 in
Max Reach Along Ground257 in
Max Vertical Wall Digging Depth94 in
Max Loading Height179 in
Shipping Length of Unit256 in
Max Cutting Height247 in
Shipping Height of Unit101 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.50 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth174 in
Max Cutting Height258 in
Max Loading Height190 in
Max Vertical Wall Digging Depth108 in
Max Reach Along Ground271 in
Shipping Height of Unit89 in
Shipping Length of Unit256 in
