Sakai

R2-1

Smooth Drum Roller

Max Speed
10.0 mph
Gross Power
75.1 hp
All smooth drum rollers

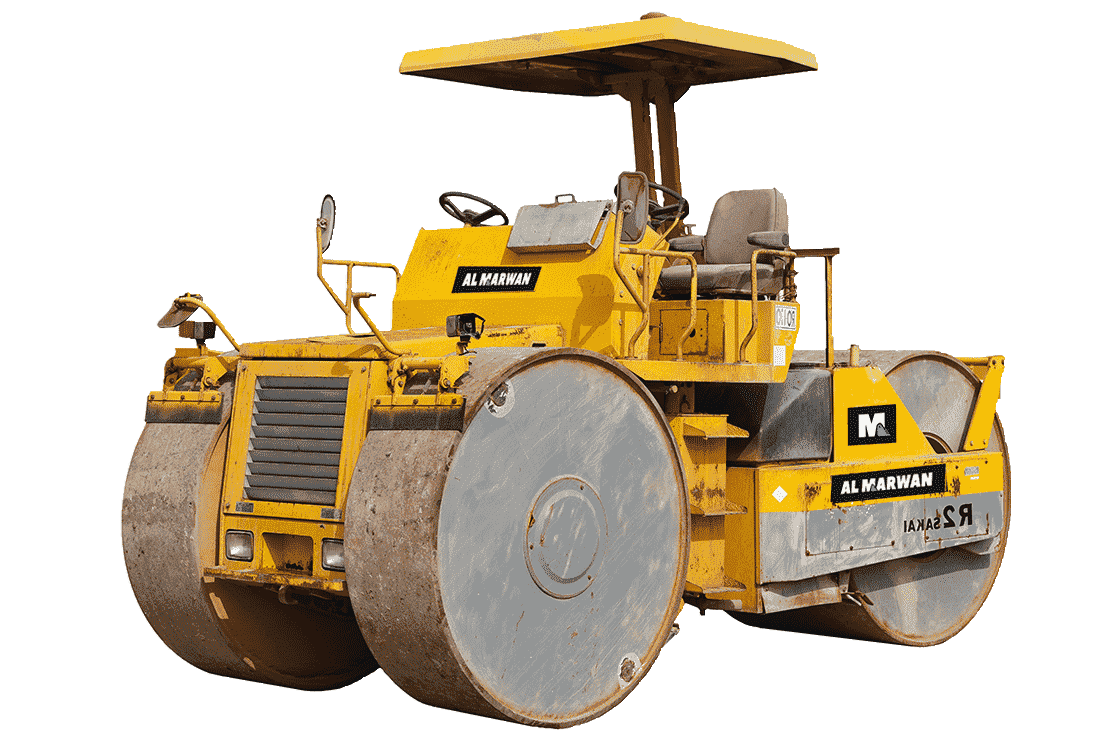

Sakai R2-1 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: almarwan.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Max Speed10.0 mph

Engine

Engine specifications
Engine ModelW04D-F Diesel engine
Displacement245 in³
Power Measured @2,050 rpm
Gross Power75.1 hp

Weights

Weights specifications
Operating Weight - standard20,503 lb
Operating Weight - max ballast27,117 lb
Max Static Linear Load - Drive Drum65 lb-ft
Max Static Linear Load - guide drum68 lb-ft

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase134 in
Overall Length17 in
Overall Width83 in
Height - Top of ROPS/FOPS121 in
Height103 in
Drum Diameter - Front65 in
Drum Diameter - Rear65 in
