Sakai

SV512D

Smooth Drum Roller

Operating Weight
23,149 lb
Max Speed
6.3 mph
Drum Width
84 in
Gross Power
114.7 hp
All smooth drum rollers

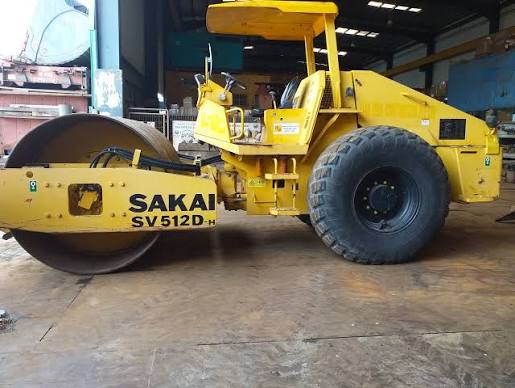

Sakai SV512D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,149 lb
Max Speed6.3 mph
Fuel Capacity66.1 gal
Operating Voltage24 V
Hydraulic System Fluid Capacity13.3 gal

Engine

Engine specifications
Engine Model1004-40TW diesel engine
Displacement244 in³
Power Measured @2,200 rpm
Gross Power114.7 hp
Number of Cylinders4
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab111 in
Wheelbase10 in
Overall Length19 in
Overall Width91 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1-26-8PR (OR)

Drum

Drum specifications
Drum Width84 in
Drum Diameter60 in
Vibration Frequency 137 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High50,807 lb
Vibration Frequency 228 vpm
Centrifugal Force - Low38,667 lb
Nominal Amplitude - Low0 in
