Sakai

SV900DV

Smooth Drum Roller

Operating Weight
42,770 lb
Max Speed
6.3 mph
Drum Width
85 in
Gross Power
169.0 hp
All smooth drum rollers

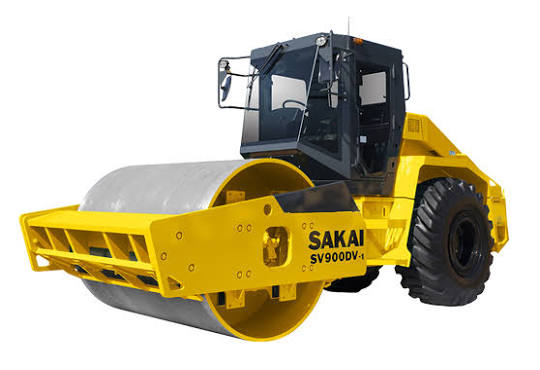

Sakai SV900DV Smooth Drum Roller
1 / 5
Image 1 of 5
Image: multiequipindo.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight42,770 lb
Max Speed6.3 mph
Fuel Capacity95.2 gal
Operating Voltage24 V
Hydraulic System Fluid Capacity19.1 gal

Engine

Engine specifications
Engine ModelBB-6BG1T
Displacement396 in³
Power Measured @2,200 rpm
Gross Power169.0 hp
Number of Cylinders6
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab118 in
Wheelbase10 in
Overall Length21 in
Overall Width101 in

Tires & Wheels

Tires & Wheels specifications
Tires23.5-25-16PR(OR)

Drum

Drum specifications
Drum Width85 in
Drum Diameter65 in
Vibration Frequency 128 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High77,109 lb
Vibration Frequency 223 vpm
Centrifugal Force - Low77,109 lb
Nominal Amplitude - Low0 in
