Sakai

SW502

Smooth Drum Roller

Operating Weight
9,017 lb
Max Speed
6.3 mph
Drum Width
51 in
Gross Power
41.1 hp
All smooth drum rollers

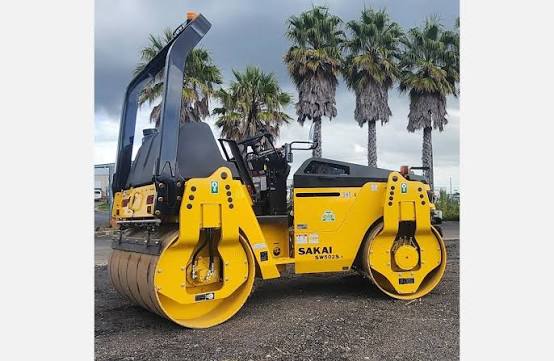

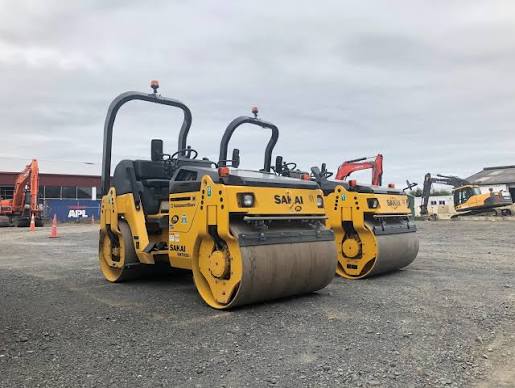

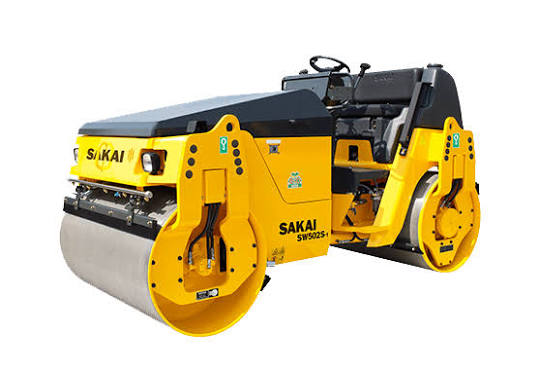

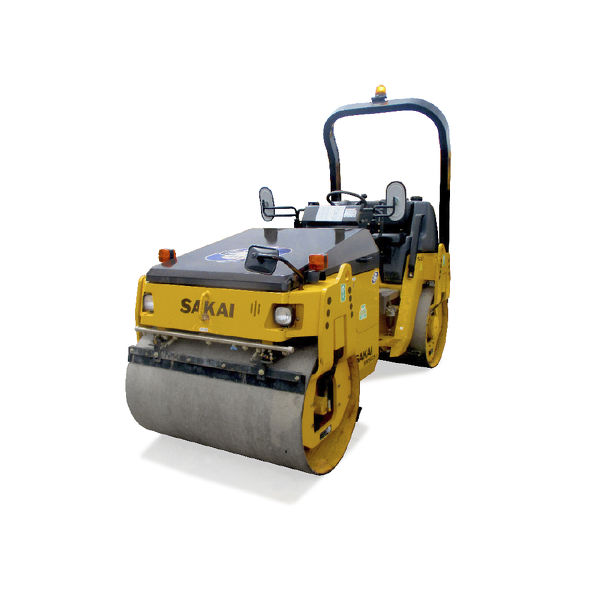

Sakai SW502 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: etlhire.co.nz

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,017 lb
Max Speed6.3 mph
Fuel Capacity13.3 gal

Engine

Engine specifications
Engine ModelV2203KA
Power Measured @2,300 rpm
Gross Power41.1 hp

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab67 in
Wheelbase8 in
Overall Length10 in
Overall Width55 in

Drum

Drum specifications
Drum Width51 in
Drum Diameter32 in
Vibration Frequency 155 vpm
Centrifugal Force - High7,711 lb
Centrifugal Force - Low5,958 lb
