Samsung

SE130LC-2

Excavator

Operating Weight
28,660 lb
Max Digging Depth
217 in
Net Power
99.0 hp
All excavators

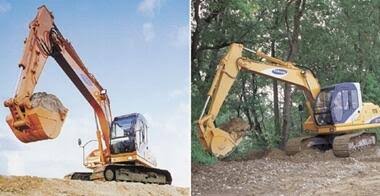

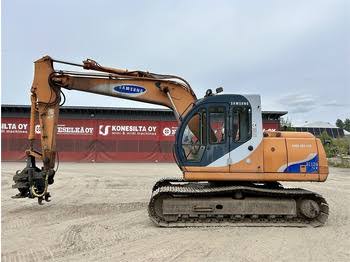

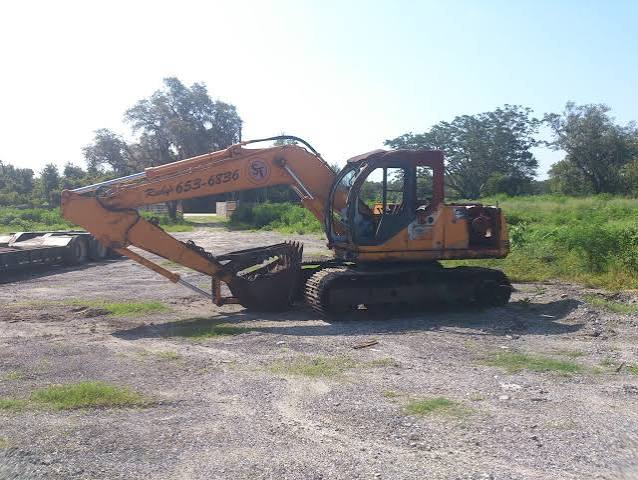

Samsung SE130LC-2 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,660 lb
Fuel Capacity68.7 gal
Hydraulic Pump Flow Capacity68.7 gal/min
Hydraulic System Relief Valve Pressure4,552 psi

Engine

Engine specifications
Engine Model4BTA3.9-C
Power Measured @2,100 rpm
Net Power99.0 hp
Torque Measured @1,600 rpm
Max Torque259 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab111 in
Length of Track on Ground119 in
Tail Swing Radius88 in
Width to Outside of Tracks103 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge79 in
Max Travel Speed3.1 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth217 in
Max Reach Along Ground329 in
Max Loading Height246 in
Max Cutting Height344 in
Shipping Length of Unit307 in
Shipping Height of Unit113 in

Bucket

Bucket specifications
Reference Bucket Capacity0.71 yd³
Maximum Bucket Capacity0.90 yd³
Minimum Bucket Capacity0.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
