Sany

STC250

All Terrain Crane

Gross Power
285.7 hp
Max Lift Capacity
50,000 lb
Max Speed - Forward
49.8 mph
Transport Width
100 in
All all terrain cranes

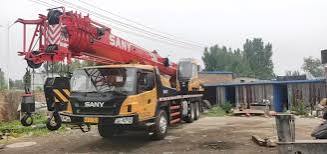

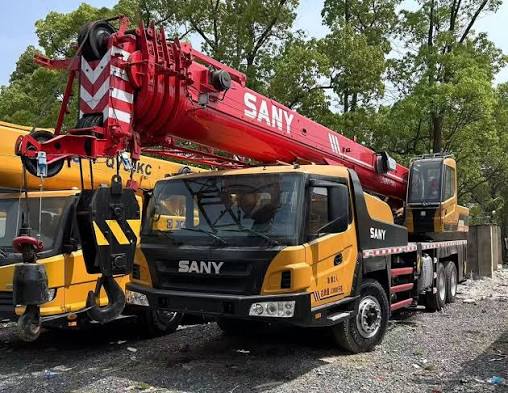

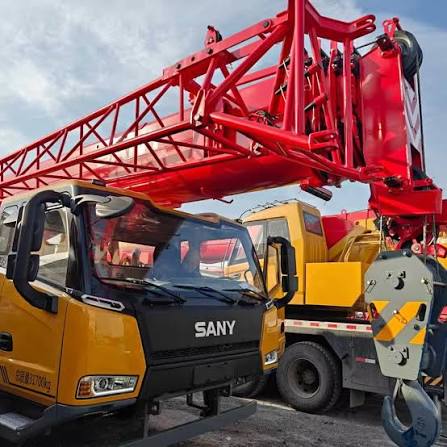

Sany STC250 All Terrain Crane
1 / 5
Image 1 of 5
Image: sanygroup.en.made-in-china.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight66,139 lb
Tire Size11.00-20
Carrier Fuel Capacity79.3 gal
Operating Voltage24 V
Number of Axels3

Dimensions

Dimensions specifications
Ground Clearance9 in
Transport Width100 in
Transport Height141 in
Transport Length503 in
Gradeability38.0 %
Angle of departure12 °
Approach Angle17 °

Transmission

Transmission specifications
Max Speed - Forward49.8 mph

Boom

Boom specifications
Max Lift Capacity50,000 lb
Number of Sections4
Max Height @ Max Raise Angle - no jib1,320 in
Min Height @ Max Raise Angle420 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power285.7 hp
Max Torque774 lb-ft
Torque Measured @1,400 rpm
Power Measured @2,100 rpm
Number of cylinders6
AspirationWater-cooled
