Sany

STC500S

All Terrain Crane

Gross Power
335.3 hp
Max Lift Capacity
100,000 lb
Max Speed - Forward
52.9 mph
Transport Width
109 in
All all terrain cranes

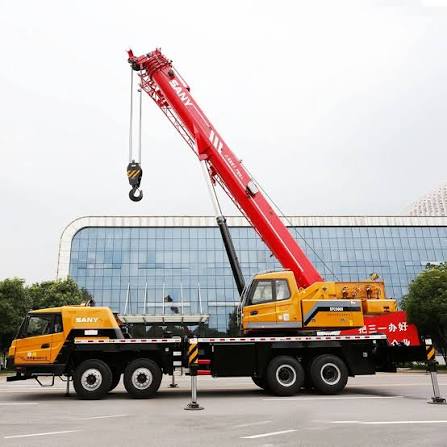

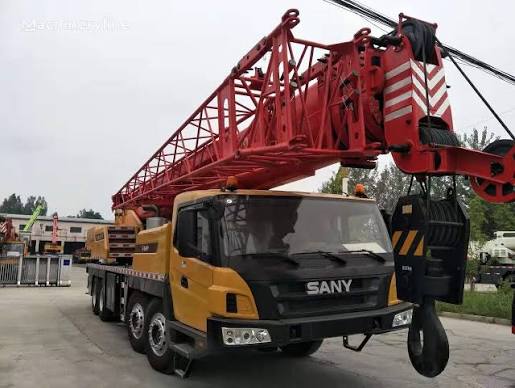

Sany STC500S All Terrain Crane
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight92,594 lb
Number of Axels4

Dimensions

Dimensions specifications
Ground Clearance12 in
Transport Width109 in
Transport Height144 in
Transport Length543 in
Gradeability40.0 %
Angle of departure12 °
Approach Angle18 °

Transmission

Transmission specifications
Max Speed - Forward52.9 mph

Boom

Boom specifications
Max Lift Capacity100,000 lb
Number of Sections5
Max Height @ Max Raise Angle - no jib1,693 in
Min Height @ Max Raise Angle454 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power335.3 hp
Max Torque1,051 lb-ft
Torque Measured @1,200 rpm
Power Measured @2,100 rpm
