ATC-3200

All Terrain Crane

Gross Power
523.0 hp
Max Speed - Forward
52.9 mph
Transport Width
119 in
All all terrain cranes

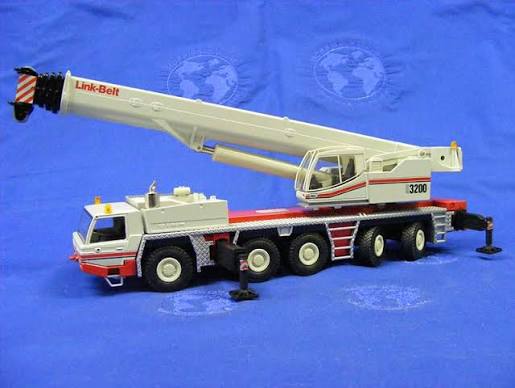

Link Belt ATC-3200 All Terrain Crane
1 / 5
Image 1 of 5
Image: diecastmatt.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight127,983 lb
Tire Size20.5R25
Carrier Fuel Capacity140.1 gal
Operating Voltage24 V
Number of Axels5
Alternator Supplied Amperage100 A
Upper Structure Fuel Capacity66.1 gal
Carrier Hydraulic System Fluid Capacity76.7 gal
Carrier Oil Capacity10.6 gal
Upper Structure Oil Capacity7.7 gal

Dimensions

Dimensions specifications
Ground Clearance13 in
Transport Width119 in
Transport Height157 in
Transport Length601 in
Width w/ Outriggers Extended328 in
Upper Structure Tail Swing Radius202 in
Carrier Length527 in

Transmission

Transmission specifications
Max Speed - Forward52.9 mph
Max Speed - Reverse4.4 mph
Transmission Typeautomated manual transmission
Number of Forward Gears16
Number of Reverse Gears2

Boom

Boom specifications
Number of Sections6
Max Height @ Max Raise Angle - no jib2,501 in
Min Height @ Max Raise Angle666 in
Max Elevating Angle84 °
Swing Speed2 rpm
Min Working Radius108 in
Max Working Radius2,160 in
Height2,363 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power523.0 hp
Displacement972 in³
Max Torque1,770 lb-ft
Torque Measured @1,300 rpm
MakeLink-Belt
Power Measured @1,800 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power185.0 hp
Displacement389 in³
MakeLink-Belt
Max Torque553 lb-ft
Torque Measured @1,200 rpm
Power Measured @1,800 rpm
