Sany

STC75

All Terrain Crane

Gross Power
368.8 hp
Max Lift Capacity
150,000 lb
Max Speed - Forward
49.8 mph
Transport Width
109 in
All all terrain cranes

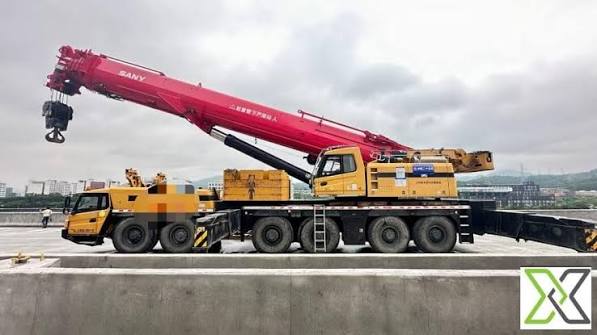

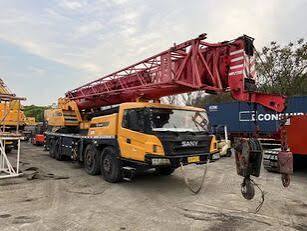

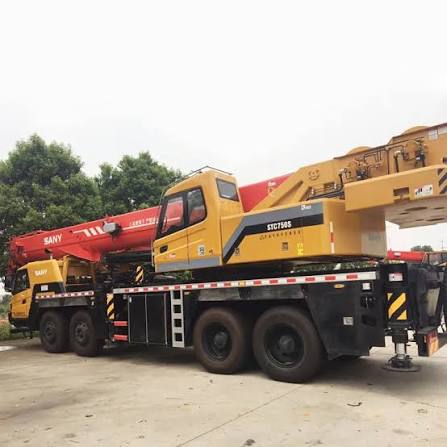

Sany STC75 All Terrain Crane
1 / 5
Image 1 of 5
Image: sanygroup.en.made-in-china.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight57,320 lb
Turning Radius61 in

Dimensions

Dimensions specifications
Ground Clearance12 in
Transport Width109 in
Transport Height146 in
Transport Length556 in
Gradeability40.0 %

Transmission

Transmission specifications
Max Speed - Forward49.8 mph

Boom

Boom specifications
Max Lift Capacity150,000 lb
Number of Sections5
Max Height @ Max Raise Angle - no jib1,772 in
Min Height @ Max Raise Angle466 in
Max Elevating Angle80 °
Swing Speed2 rpm
Min Working Radius119 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power368.8 hp
Max Torque1,143 lb-ft
Torque Measured @1,200 rpm
Power Measured @2,100 rpm
