Scat Trak

1300D

Skid Steer Loader

Operating Weight
5,404 lb
Max Speed
6.4 mph
Gross Power
49.5 hp
All skid steer loaders

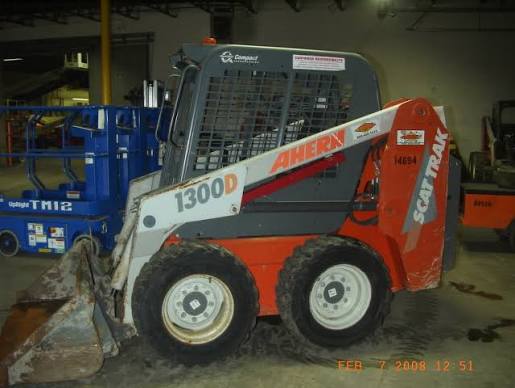

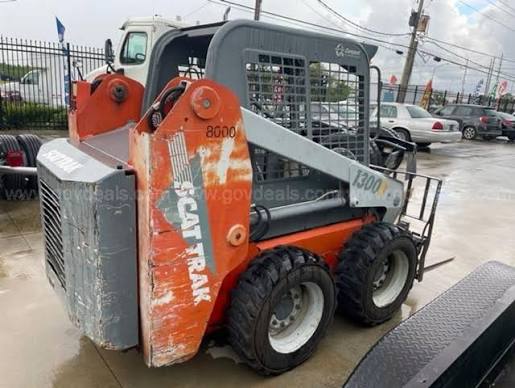

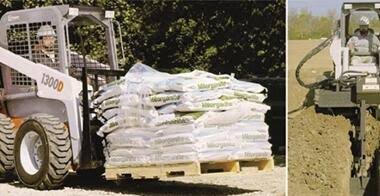

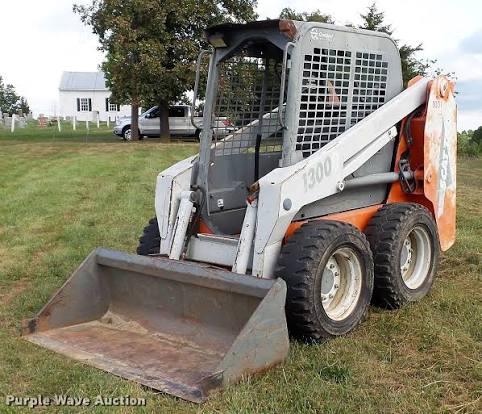

Scat Trak 1300D Skid Steer Loader
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,404 lb
Max Speed6.4 mph
Fuel Capacity17.4 gal
Hydraulic System Fluid Capacity10.0 gal
Tire Size10x16.5
Operating Voltage12 V

Engine

Engine specifications
Engine ModelV2203-E
Displacement134 in³
Power Measured @2,800 rpm
Gross Power49.5 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity16.4 gal/min

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab78 in
Wheelbase37 in
Width Over Tires60 in
Reach at Max Lift and Dump24 in
Length with Bucket130 in
Clearance at Max Lift and Dump90 in
Turning Radius from Center - inc bucket74 in
Turning Radius from Center - machine rear62 in
Length w/o Bucket103 in

Loader

Loader specifications
Operating Load Rating1,350 lb
Tipping Angle2,700 °
