Shuttlelift

5540F

Carrydeck Crane

Gross Power
84.5 hp
Operating Weight
26,500 lb
Max Lift Capacity
30,000 lb
Max Speed - Forward
14.5 mph
All carrydeck cranes

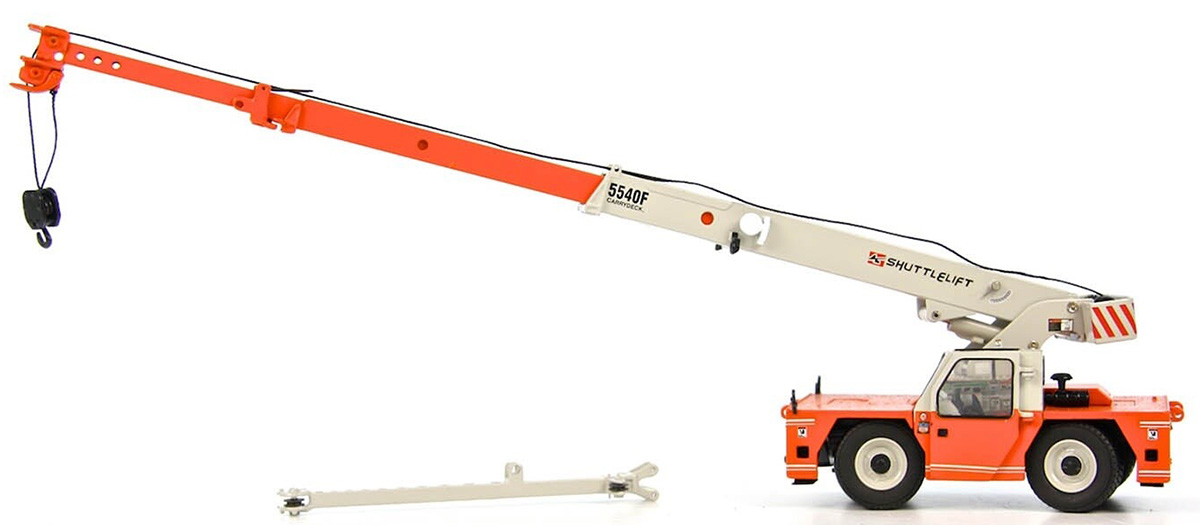

Shuttlelift 5540F Carrydeck Crane
1 / 5
Image 1 of 5
Image: 3000toys.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,500 lb
Operating Voltage12 V
Tire Size385/65R22.5
Carrier Fuel Capacity40.0 gal
Number of Axels2
Alternator Supplied Amperage63 A
Upper Structure Hydraulic System Fluid Capacity30.0 gal

Dimensions

Dimensions specifications
Ground Clearance13 in
Transport Width96 in
Transport Height96 in
Transport Length265 in
Width w/ Outriggers Extended148 in
Upper Structure Tail Swing Radius73 in
Carrier Length169 in

Transmission

Transmission specifications
Max Speed - Forward14.5 mph
Max Speed - Reverse14.5 mph
Transmission Typesynchromesh
Number of Forward Gears4
Number of Reverse Gears4

Boom

Boom specifications
Max Lift Capacity30,000 lb
Max Elevating Angle69 °
Max Height @ Max Raise Angle - no jib493 in
Min Height @ Max Raise Angle222 in
Number of Sections3
Swing Speed2 rpm
Max Working Radius450 in
Min Working Radius72 in
Height556 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power84.5 hp
MakeShuttlelift
Power Measured @2,600 rpm
