Snorkel

TB60

Aerial Lift

Max Platform Height
721 in
Overall Length
31 in
Overall Width
100 in
All aerial lifts

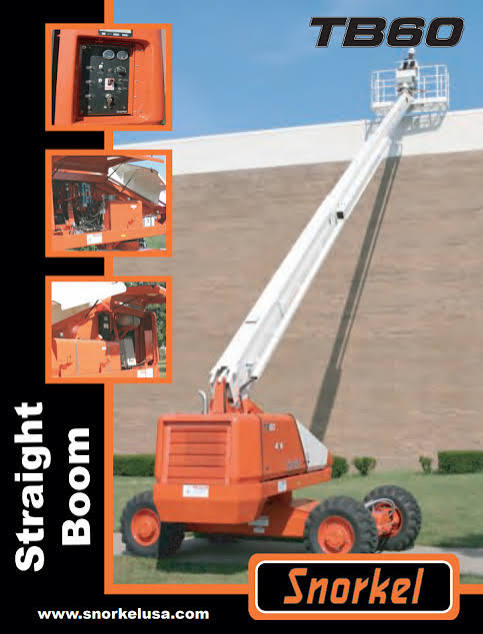

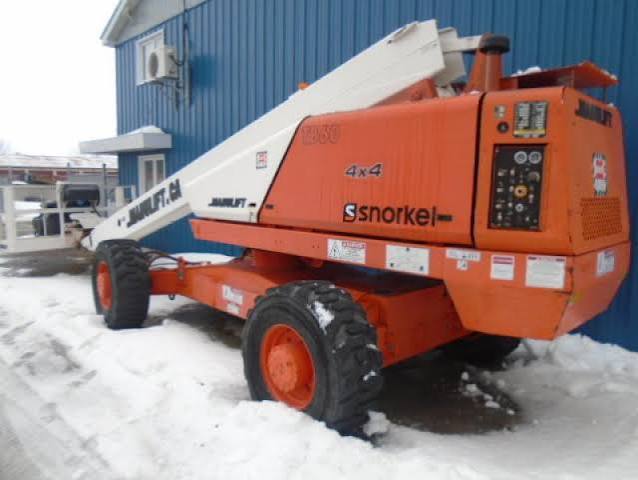

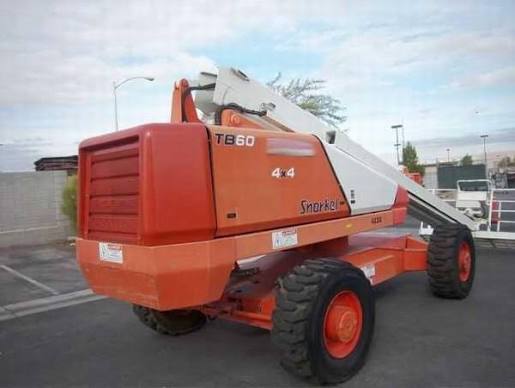

Snorkel TB60 Aerial Lift
1 / 5
Image 1 of 5
Image: aerialliftequipment.com

Specifications

21 data points

Engine

Engine specifications
Fuel Typegas/diesel

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase122 in
Overall Length31 in
Overall Width100 in
Overall Height - mast lowered107 in
Stowed Width96 in
Stowed Height107 in

Transmission

Transmission specifications
4WDopt.

Tires & Wheels

Tires & Wheels specifications
Tire Size15x19.5

Performance

Performance specifications
Operating Weight20,699 lb
Max Speed3.0 mph
Tire Size15x19.5
Hydraulic System Fluid Capacity35.1 gal
Tire Fill/TypeFoam
Fuel Capacity40.0 gal

Platform

Platform specifications
Max Platform Height721 in
Max Platform Weight Capacity500 lb
Platform Inner Length60 in
Platform Inner Width30 in
Max Horizontal Reach599 in
